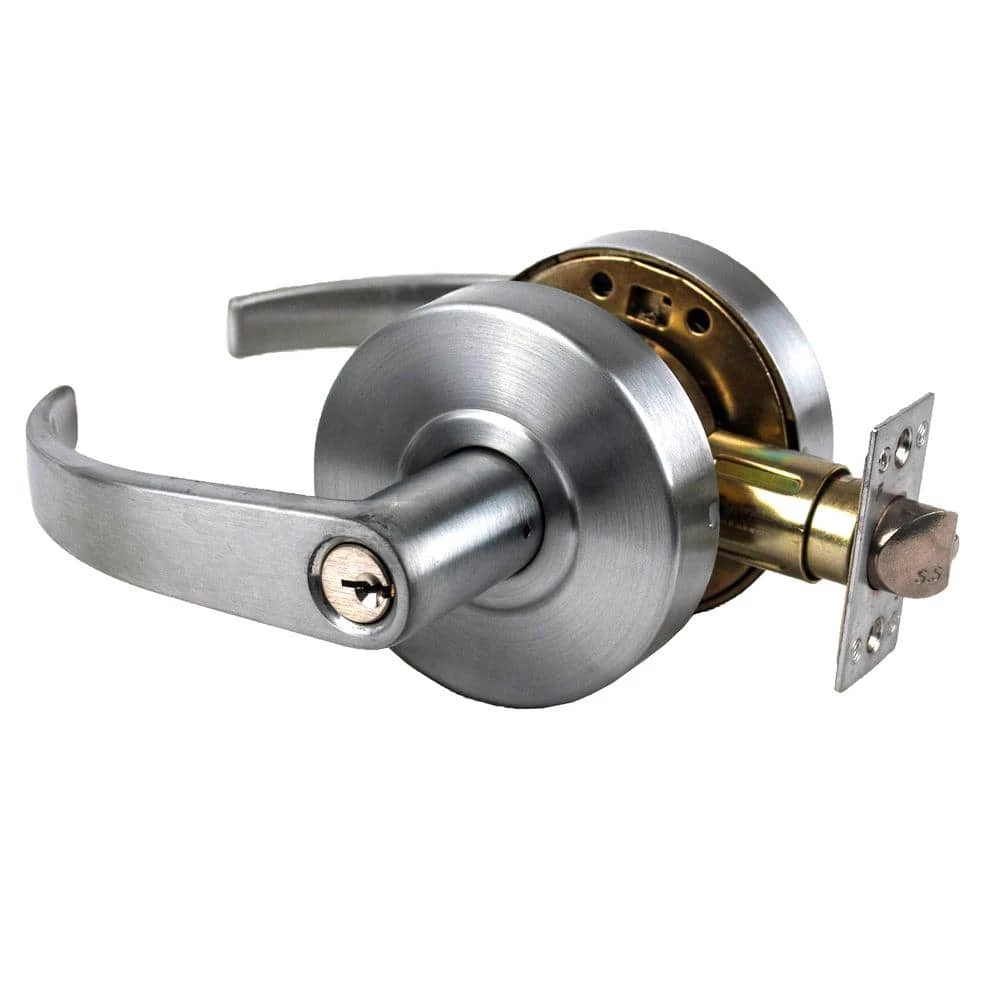

Global Door Controls Pisa Series Standard Duty Brushed Chrome Commercial Cylindrical Storeroom Door Handle with Lock and Clutch Function
Original price was: $58.18.$42.47Current price is: $42.47.
Keyed locking lever automatically locks on the outside if closed
ADA compliant, ANSI A156.2 Grade 2 Certified, UL Listed R20759
Freewheeling clutch lever mechanism for added safety
- Quick responses, top-notch service.
- The quality solution for all your needs.
- Fast, friendly, always here to help.
- Experience the difference quality makes.

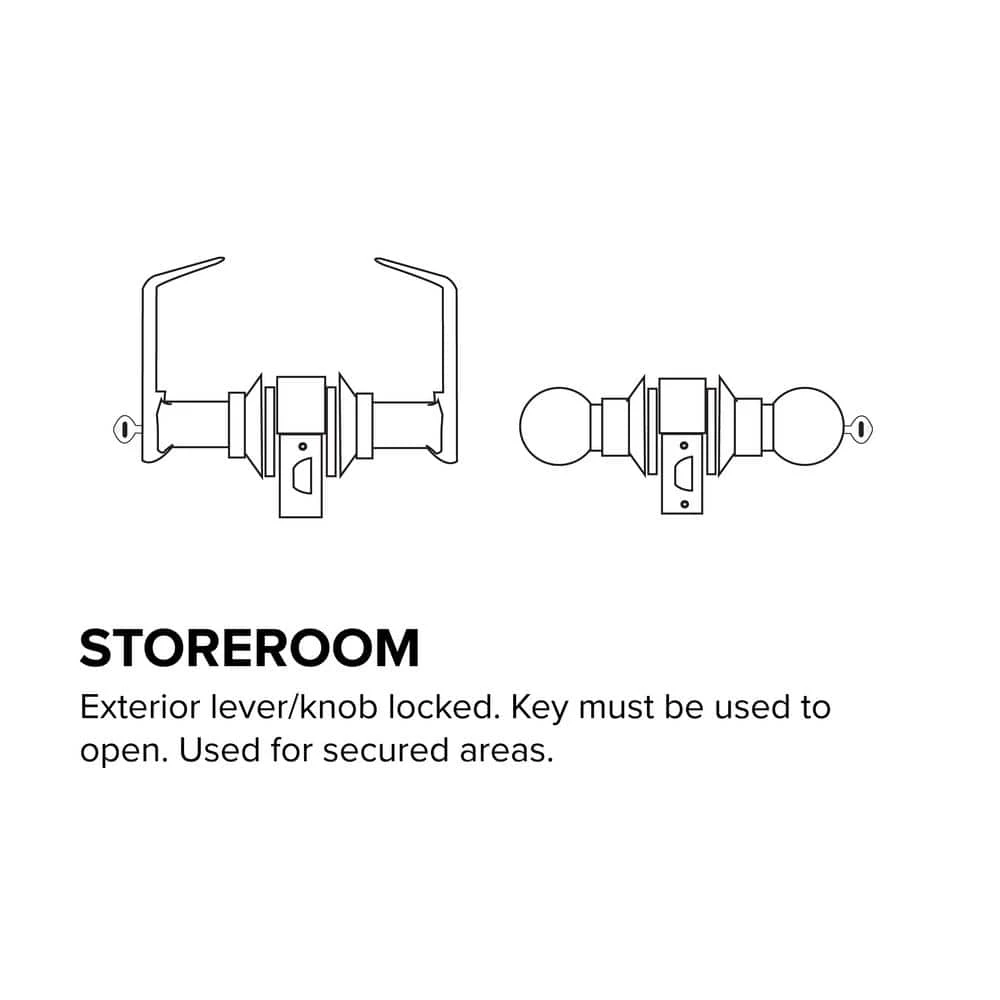

The Global Door Controls GAL cylindrical storeroom leverset comes in a brushed chrome finish and includes an ANSI strike. This storeroom door handle always requires a key to open the door from the outside, the inside remains unlocked. This leverset is ADA compliant and includes a clutch function that allows the lever to rotate without unlatching the lock. Constructed for durability, this lever exceeds ANSI standards for Grade 2, making it the perfect fit for commercial, standard duty applications. It includes all necessary hardware and instructions, resulting in an easy installation process.
- Fits doors with 1-3/8 in. to 1-7/8 in. thickness
- Removable Thru-Bolts to prevent lock rotation
- Non-handed/reversible (fits both right and left-handed doors)

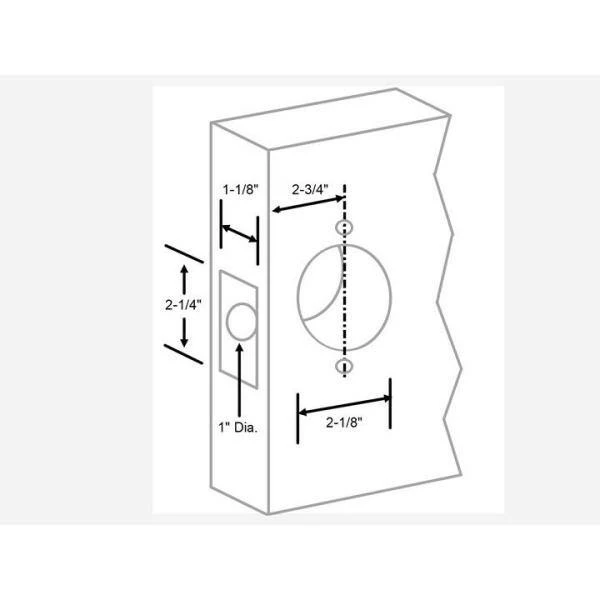

- Backset: 2-3/4″, Latch Face: 1-1/8″ x 2-1/4″
- Includes ANSI Strike, measuring 1-1/4″ x 4-7/8″
- Schlage “C” keyway, includes two 5 pin keys (6 pin capable)
- Fits 161 door prep
- Individual spring on each side prevents lever sag
- Lifetime Mechanical Warranty
| Application Type | Storeroom |
|---|---|
| Material | Steel |
| Minimum Door Thickness (in.) | 1.325 |
| Maximum Door Thickness (in.) | 1.875 |
| Lever Grip Length (in.) | 6 in |
| Cross Bore Diameter (in.) | 2.125 in |
| Assembled Width (in.) | 3 in |
| Assembled Height (in.) | 7 in |
| Assembled Depth (in.) | 4 in |
| Manufacturer Warranty | Lifetime Mechanical Warranty |
| Certifications and Listings | ADA Compliant,ANSI Certified,UL Listed |
| Security/ANSI Grade | ANSI Grade 2 (Better) |
| Returnable | 90-Day |
| Product Weight (lb.) | 3.2 lb |
| Lever style | Wave |
| Commercial/Residential | Commercial |
| Lever material | Stainless Steel |
| Keyway | C |
| Keying Type | Keyed Alike |
| Included | Hardware,Installation Instructions,Mounting Hardware,Self Guiding Screws |
| Hardware Finish Family | Chrome |
| Hardware Color Family | Chrome |
| Finish | Brushed Chrome |
| Features | Easy Installation |
| Electronic/Mechanical | Mechanical |
| Door Locks & Knobs Product Type | Storeroom Levers |
| Door Lock Style | Classic |
| Door Handing | Universal |
| Projection (in.) | .625 |
