Global Door Controls Pisa Series Standard Duty Brushed Chrome Commercial Cylindrical Passage Hall/Closet Door Handle with Clutch Function
Original price was: $54.55.$32.73Current price is: $32.73.

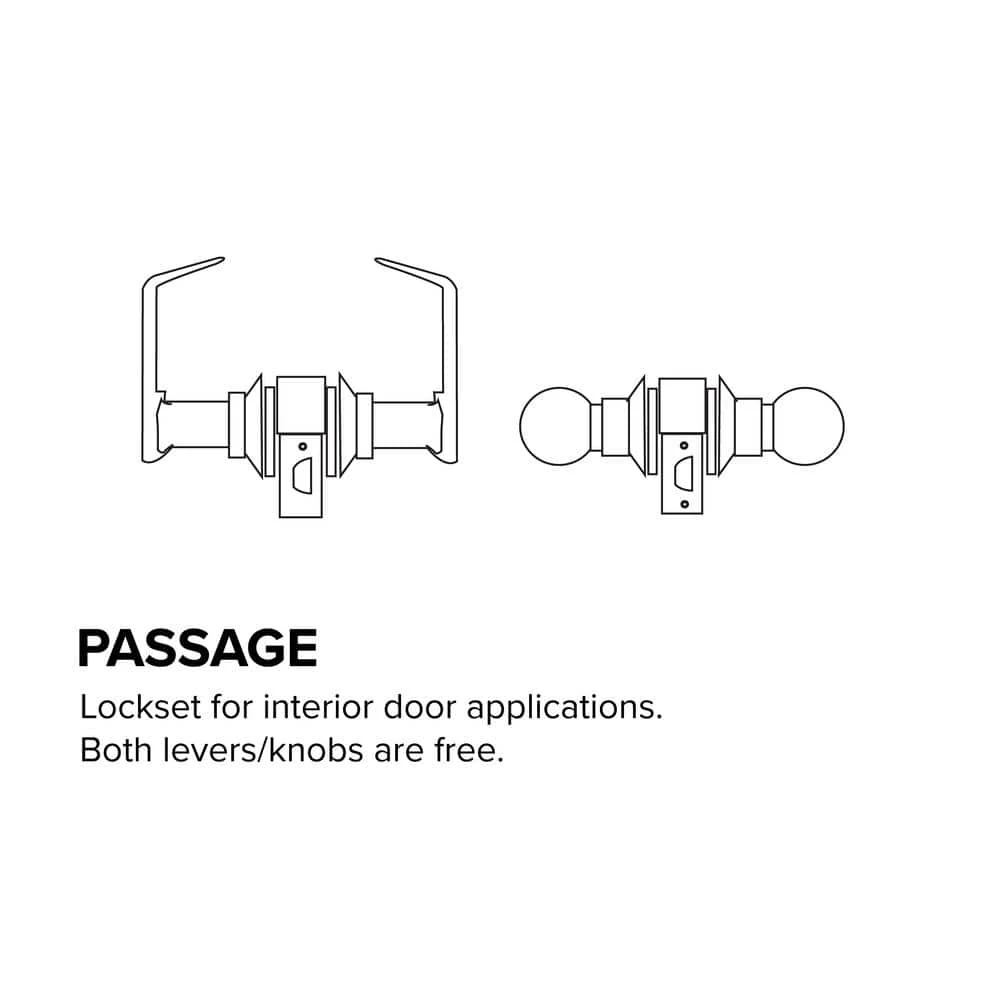

Non-locking lever used for interior closet, hall & basement doors
ADA compliant, ANSI A156.2 Grade 2 Certified, UL Listed R20759
Freewheeling clutch lever mechanism for added safety
- Quick responses, top-notch service.
- The quality solution for all your needs.
- Fast, friendly, always here to help.
- Experience the difference quality makes.

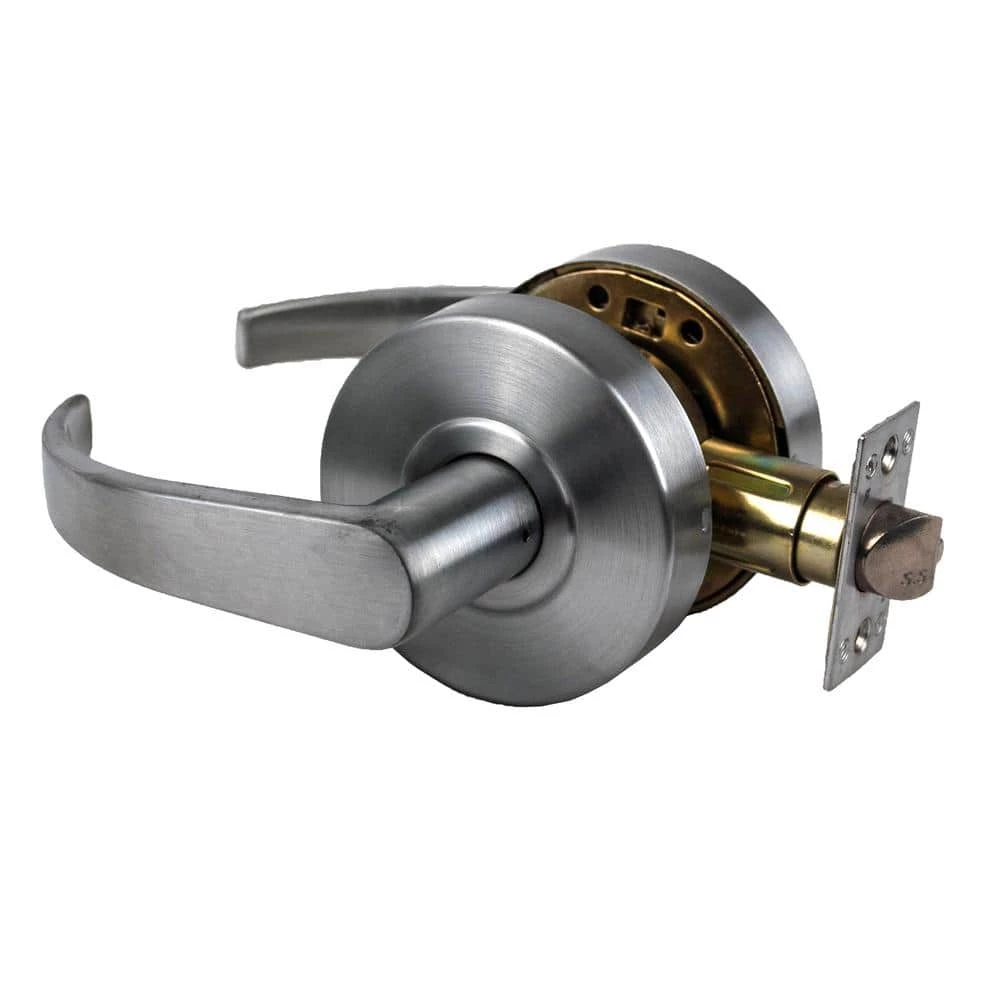

The Global Door Controls GAL cylindrical passage leverset comes in a brushed chrome finish and includes an ANSI strike. This passage door handle is designed for use on hallways and closets that do not require a locking function. This leverset is ADA compliant and includes a clutch function that allows the lever to rotate without unlatching the lock. Constructed for durability, this lever exceeds ANSI standards for Grade 2, making it the perfect fit for commercial, standard duty applications. It includes all necessary hardware and instructions, resulting in an easy installation process.
- Fits doors with 1-3/8 in. to 1-7/8 in. thickness
- Removable Thru-Bolts to prevent lock rotation
- Non-handed/reversible (fits both right and left-handed doors)

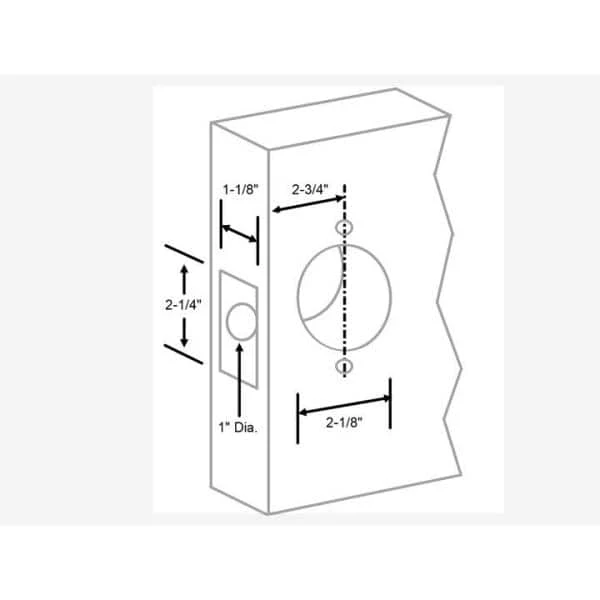

- Backset: 2-3/4″, Latch Face: 1-1/8″ x 2-1/4″
- Includes ANSI Strike, measuring 1-1/4″ x 4-7/8″
- Lifetime Mechanical Warranty
- Fits 161 door prep
- Individual spring on each side prevents lever sag
| Application Type | Passage |
|---|---|
| Lever Grip Length (in.) | 6 in |
| Certifications and Listings | ADA Compliant,ANSI Certified,UL Listed |
| Manufacturer Warranty | Lifetime Mechanical Warranty |
| Assembled Depth (in.) | 4 in |
| Assembled Height (in.) | 7 in |
| Assembled Width (in.) | 3 in |
| Cross Bore Diameter (in.) | 2.125 in |
| Lever housing height (in.) | 0 |
| Security/ANSI Grade | ANSI Grade 2 (Better) |
| Lever housing width (in.) | 0 |
| Maximum Door Thickness (in.) | 2 |
| Minimum Door Thickness (in.) | 1.375 |
| Projection (in.) | .625 |
| Strike Height (in.) | 0 |
| Strike Width (in.) | 0 |
| Strike | Square corner |
| Returnable | 90-Day |
| Commercial/Residential | Commercial |
| Hardware Finish Family | Chrome |
| Door Handing | Universal |
| Door Lock Style | Classic |
| Door Locks & Knobs Product Type | Passage Levers |
| Features | Easy Installation |
| Finish | Brushed Chrome |
| Hardware Color Family | Chrome |
| Included | Hardware,Installation Instructions,Mounting Hardware,Self Guiding Screws |
| Product Weight (lb.) | 3.2 lb |
| Interior/Exterior | Interior |
| Lever material | Steel |
| Lever style | Wave |
| Lock Type | Unkeyed |
| Material | Steel |
| Pack Size | 1 |
| Throw Length (in.) | 0 |
