Global Door Controls Pisa Series Standard Duty Brushed Chrome Commercial Cylindrical Entry Door Handle with Lock and Clutch Function
Original price was: $54.55.$38.19Current price is: $38.19.
Keyed entry lever best used for security on exterior doors
ADA compliant, ANSI A156.2 Grade 2 Certified, UL Listed R20759
Freewheeling clutch lever mechanism for added safety
- Quick responses, top-notch service.
- The quality solution for all your needs.
- Fast, friendly, always here to help.
- Experience the difference quality makes.
The Global Door Controls GAL cylindrical entry leverset comes in a brushed chrome finish and includes an ANSI strike. This entry door handle has a push button on the interior and a key for the exterior side of the lever, allowing you to leave quickly and re-enter easily. This leverset is ADA compliant and includes a clutch function that allows the lever to rotate without unlatching the lock. Constructed for durability, this lever exceeds ANSI standards for Grade 2, making it the perfect fit for commercial, standard duty applications. It includes all necessary hardware and instructions, resulting in an easy installation process.
- Fits doors with 1-3/8 in. to 1-7/8 in. thickness
- Removable Thru-Bolts to prevent lock rotation
- Non-handed/reversible (fits both right and left-handed doors)

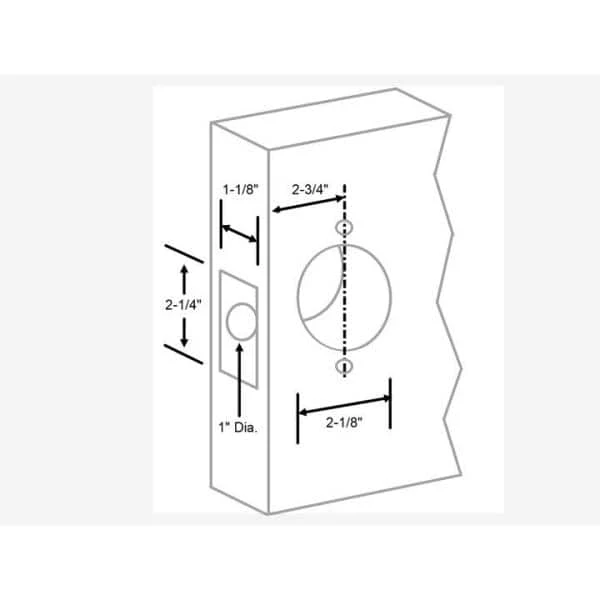

- Backset: 2-3/4″, Latch Face: 1-1/8″ x 2-1/4″
- Includes ANSI Strike, measuring 1-1/4″ x 4-7/8″
- Schlage “C” keyway, includes two 5 pin keys (6 pin capable)
- Fits 161 door prep
- Individual spring on each side prevents lever sag
- Lifetime Mechanical Warranty
| Application Type | Entry |
|---|---|
| Bore hole diameter (in.) | 2.125 |
| Wired or Wireless | No electrical connectivity |
| Certifications and Listings | ADA Compliant,ANSI Certified,UL Listed |
| Manufacturer Warranty | Lifetime Mechanical Warranty |
| Assembled Depth (in.) | 4 in |
| Assembled Height (in.) | 7 in |
| Assembled Width (in.) | 3 in |
| Backset Size (in.) | 2-3/4 in |
| Cross Bore Diameter (in.) | 1 in |
| Strike | Square corner |
| Housing Width (in.) | 2.125 |
| Housing height (in.) | 2.25 |
| Lever Grip Length (in.) | 6 in |
| Maximum Door Thickness (in.) | 1.875 |
| Minimum Door Thickness (in.) | 1.375 |
| Projection (in.) | .625 |
| Strike Height (in.) | 0 |
| Strike Width (in.) | 0 |
| Total Number of Keys Included | 2 |
| Security/ANSI Grade | ANSI Grade 2 (Better) |
| Combo Pac | Lockset |
| Hardware Finish Family | Chrome |
| Commercial/Residential | Commercial |
| Door Handing | Universal |
| Door Lock Style | Classic |
| Door Locks & Knobs Product Type | Keyed Levers |
| Electronic/Mechanical | Mechanical |
| Features | Easy Installation |
| Finish | Brushed Chrome |
| Hardware Color Family | Chrome |
| Included | Hardware,Installation Instructions,Mounting Hardware,Self Guiding Screws |
| Returnable | 90-Day |
| Interior/Exterior | Exterior,Interior |
| Keyway | C |
| Lever material | Steel |
| Lever style | Wave |
| Lock Type | Keyed |
| Material | Steel |
| Number of Pins | 5 |
| Product Weight (lb.) | 3.2 lb |
| Throw Length (in.) | 0 |
