Global Door Controls Eiffel Series Standard Duty Brushed Chrome Commercial Entry Door Handle with Lock, Clutch Function and IC Core
Original price was: $59.00.$42.48Current price is: $42.48.

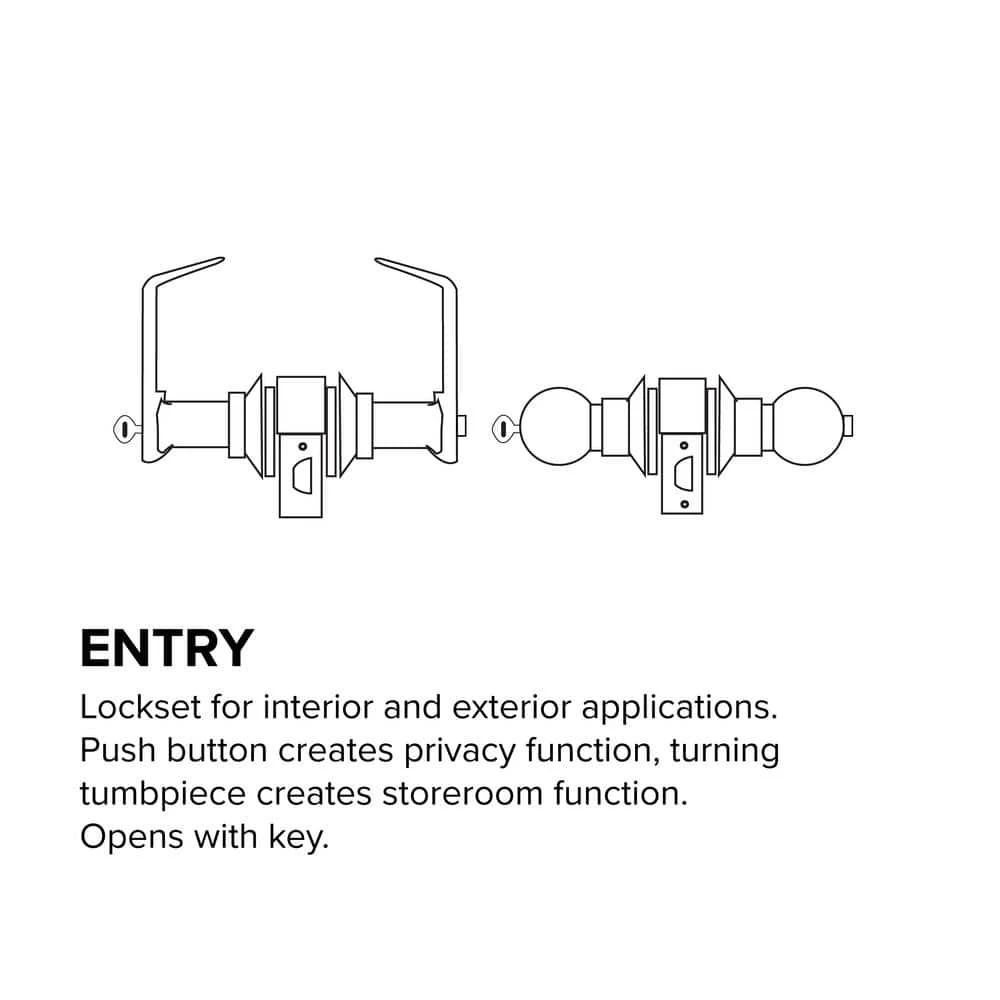

Keyed entry lever best used for security on exterior doors
ADA compliant, ANSI A156.2 Grade 2 Certified, UL Listed R20759

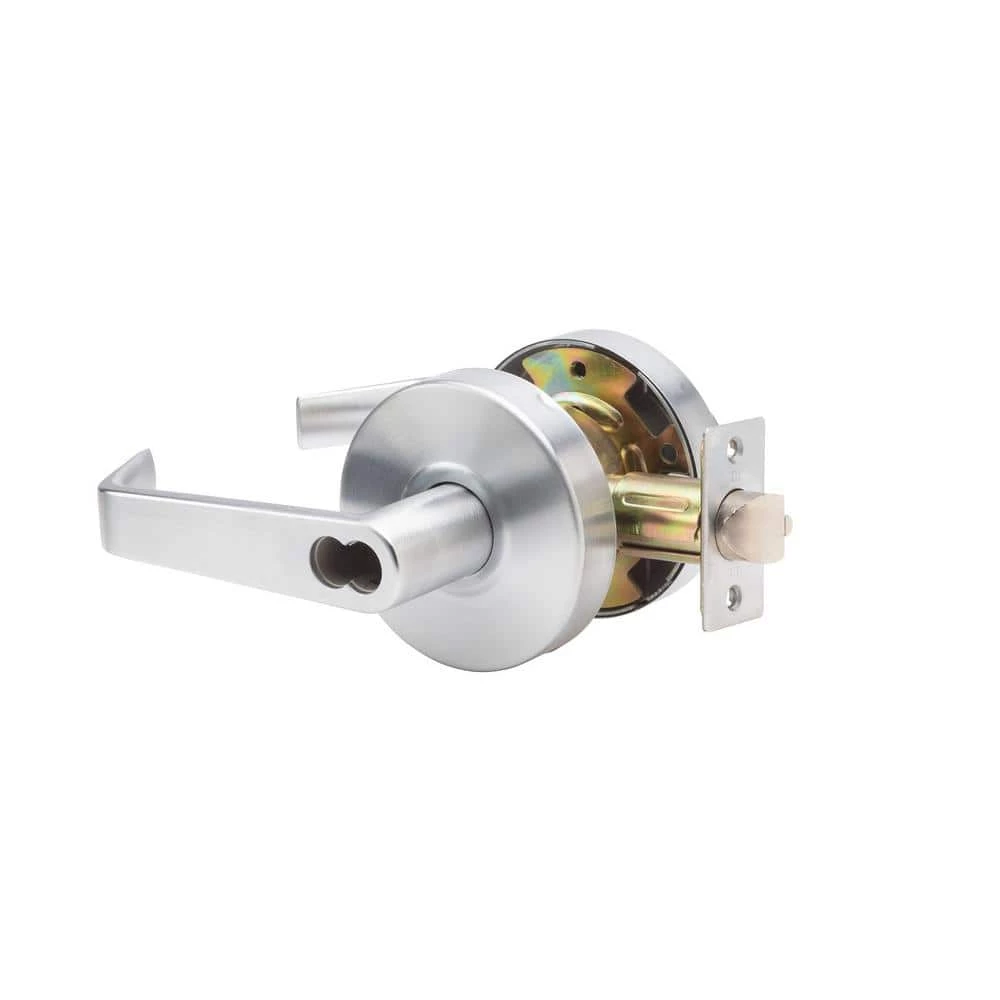

Prepped for small format IC core, but doesn’t include IC Cylinder
- Quick responses, top-notch service.
- The quality solution for all your needs.
- Fast, friendly, always here to help.
- Experience the difference quality makes.

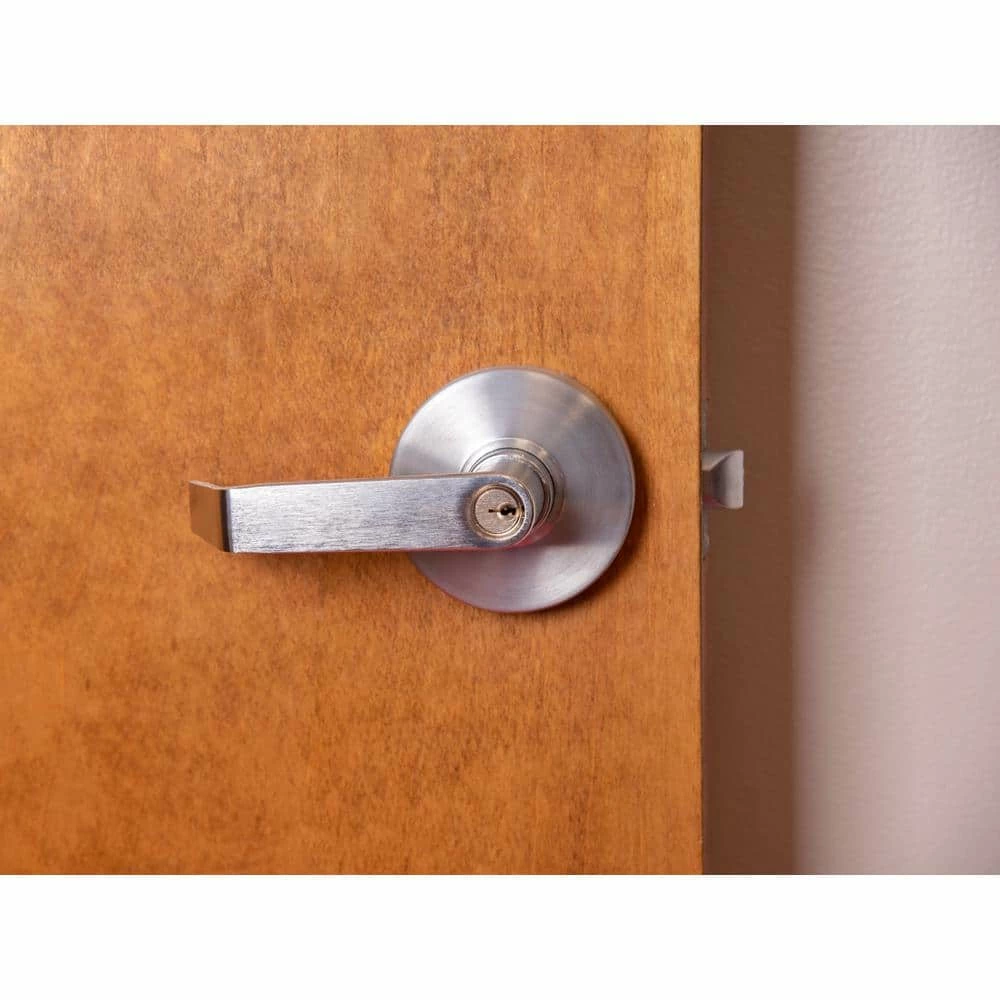

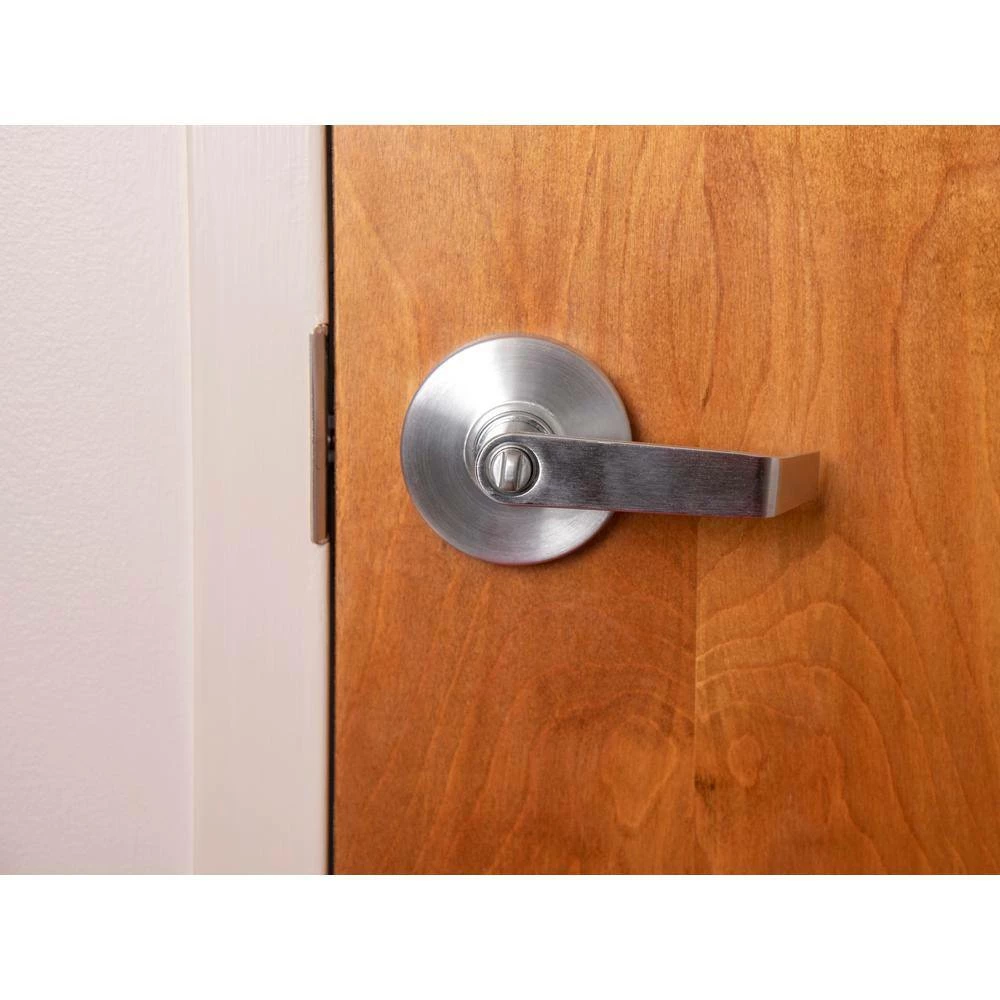

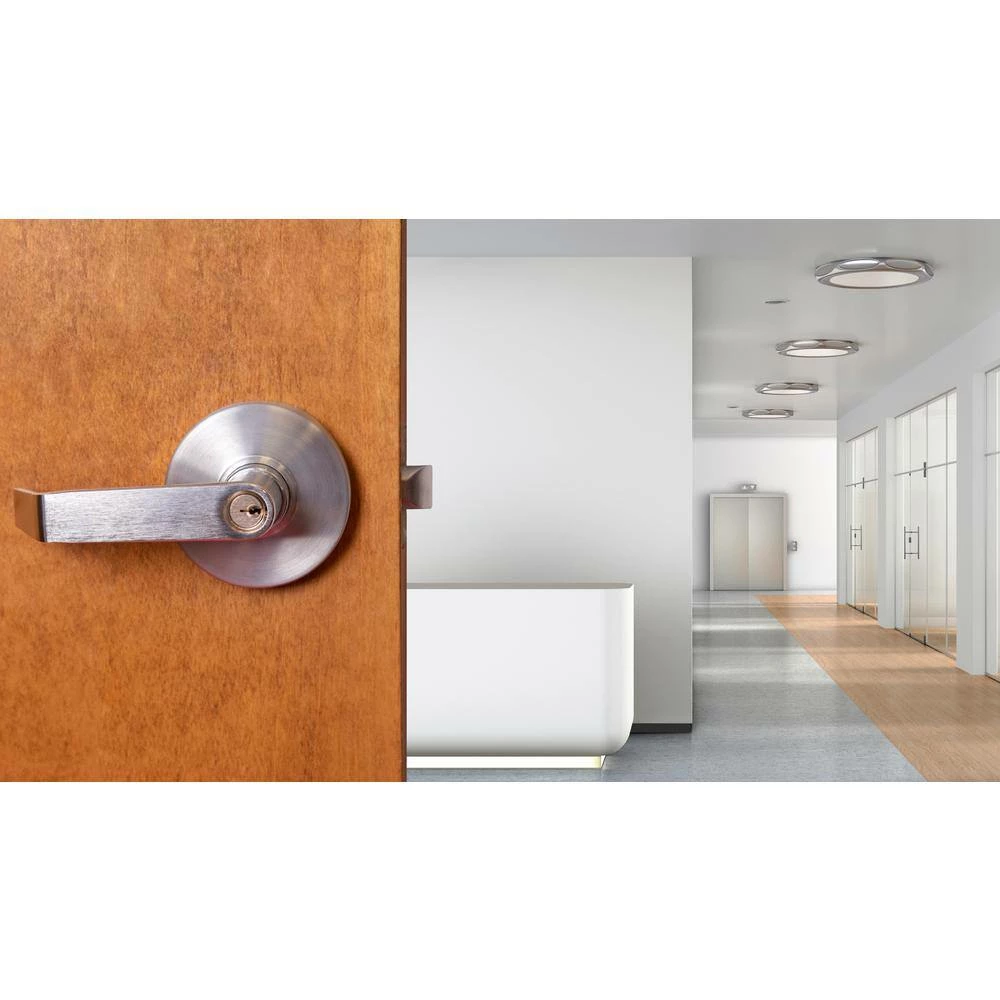

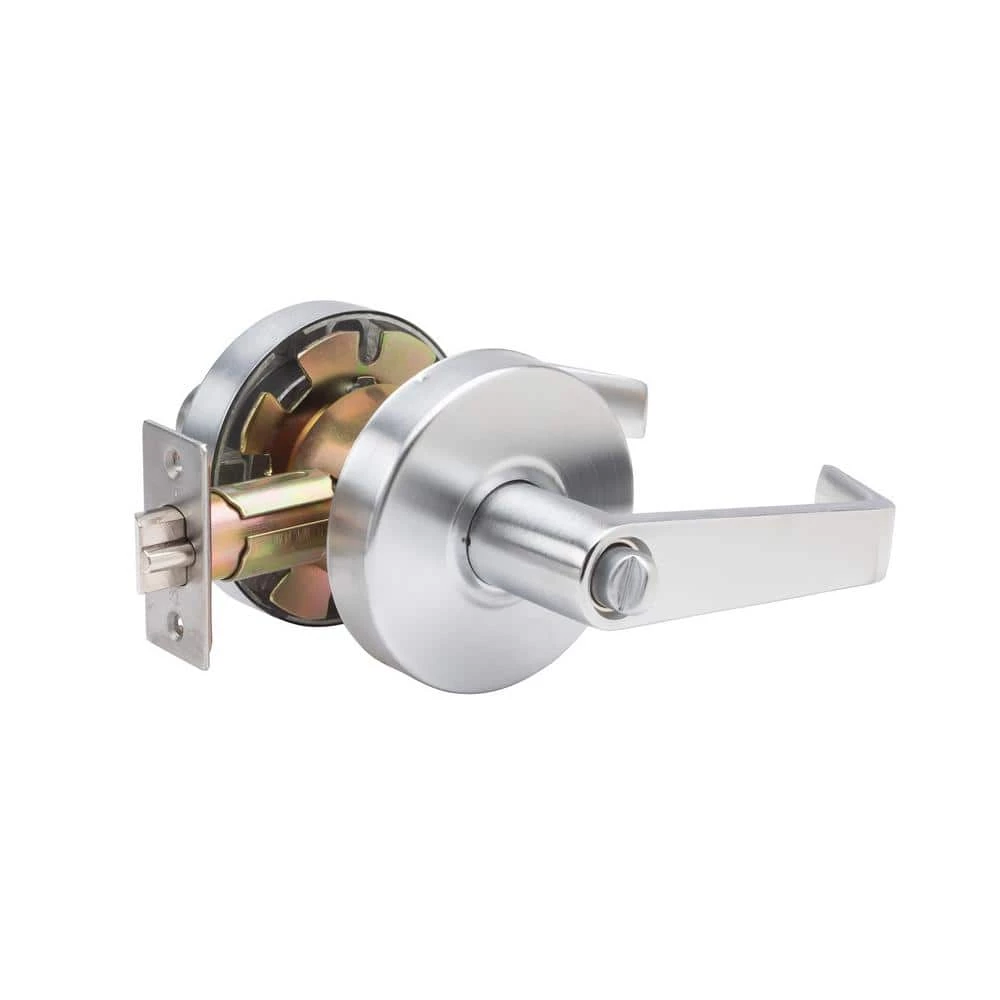

The Global Door Controls GAL cylindrical entry leverset comes in a brushed chrome finish and includes an ANSI strike. This entry door handle has a push button on the interior and a key for the exterior side of the lever, allowing you to leave quickly and re-enter easily. This leverset is ADA compliant and includes a clutch function that allows the lever to rotate without unlatching the lock. Constructed for durability, this lever exceeds ANSI standards for Grade 2, making it the perfect fit for commercial, standard duty applications. The lever is prepared for any small format interchangeable core installation for the entry cylinder, but the cylinder itself is sold separately. It includes all necessary hardware and instructions, resulting in an easy installation process.
- Fits doors with 1-3/8 in. to 1-7/8 in. thickness
- Freewheeling clutch lever mechanism for added safety
- Removable Thru-Bolts to prevent lock rotation
- Non-handed/reversible (fits both right and left-handed doors)

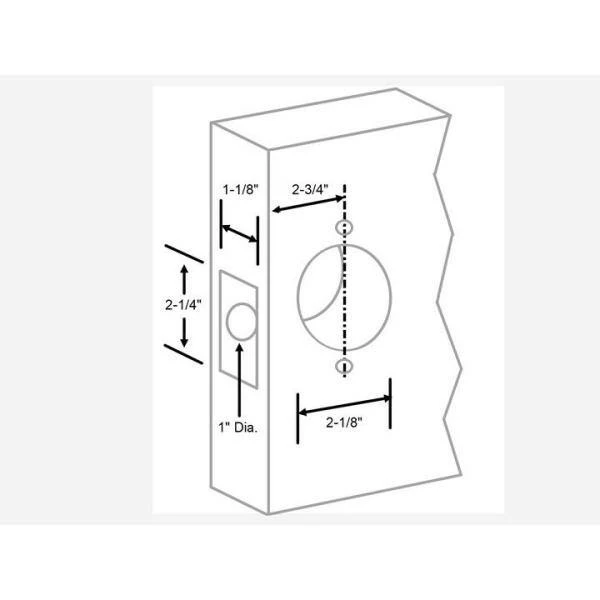

- Backset: 2-3/4″, Latch Face: 1-1/8″ x 2-1/4″

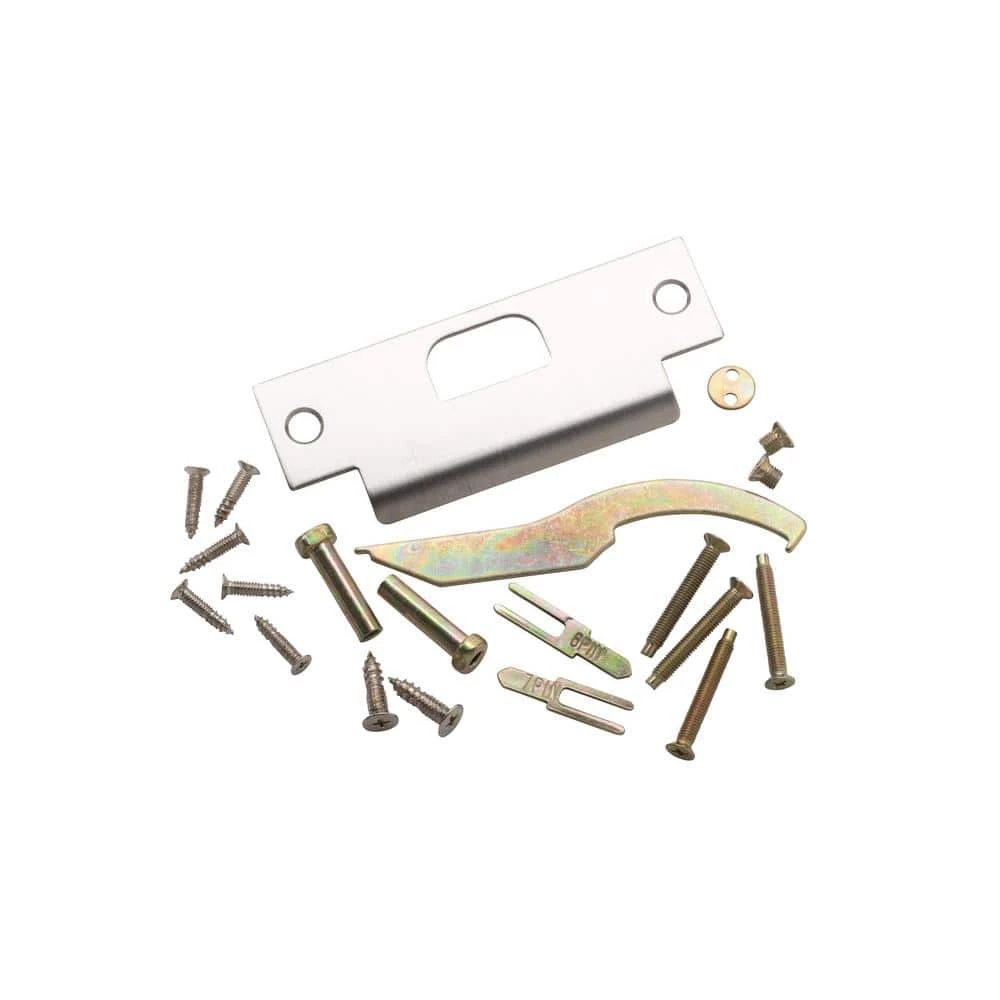

- Includes ANSI Strike, measuring 1-1/4″ x 4-7/8″
- Lifetime Mechanical Warranty
- Fits 161 door prep
- Individual spring on each side prevents lever sag
| Application Type | Entry |
|---|---|
| Bore hole diameter (in.) | 2.2 |
| Wired or Wireless | No electrical connectivity |
| Certifications and Listings | ADA Compliant,ANSI Certified,UL Listed |
| Manufacturer Warranty | Lifetime Mechanical Warranty |
| Assembled Depth (in.) | 3 in |
| Assembled Height (in.) | 3.5 in |
| Assembled Width (in.) | 6.5 in |
| Backset Size (in.) | 2-3/4 in |
| Cross Bore Diameter (in.) | 2.2 in |
| Strike | Round corner |
| Housing Width (in.) | 3.5 |
| Housing height (in.) | 3.5 |
| Lever Grip Length (in.) | 5.5 in |
| Maximum Door Thickness (in.) | 1.875 in |
| Minimum Door Thickness (in.) | 1.375 |
| Projection (in.) | 2.75 |
| Strike Height (in.) | 4.875 |
| Strike Width (in.) | 1.25 |
| Total Number of Keys Included | 2 |
| Security/ANSI Grade | ANSI Grade 2 (Better) |
| Combo Pac | Non-Combo |
| Hardware Finish Family | Chrome |
| Commercial/Residential | Commercial |
| Door Handing | Universal |
| Door Lock Style | Classic |
| Door Locks & Knobs Product Type | Keyed Levers |
| Electronic/Mechanical | Mechanical |
| Features | Easy Installation |
| Finish | Brushed Chrome |
| Hardware Color Family | Chrome |
| Included | Hardware,Installation Instructions,Mounting Hardware,Self Guiding Screws |
| Returnable | 90-Day |
| Interior/Exterior | Exterior,Interior |
| Keyway | C |
| Lever material | Steel |
| Lever style | Straight |
| Lock Type | Keyed |
| Material | Steel |
| Number of Pins | 6 |
| Product Weight (lb.) | 3.22 lb |
| Throw Length (in.) | 2.75 |
