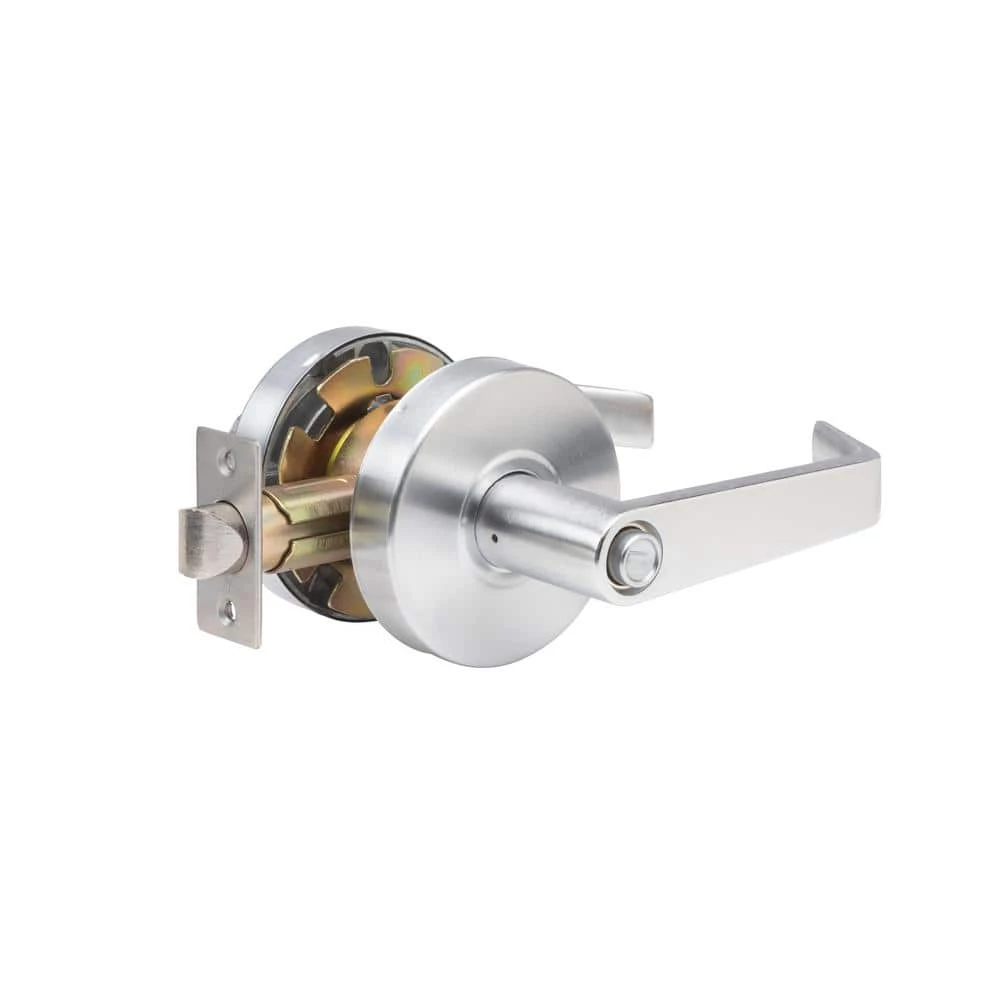

Global Door Controls Eiffel Series Standard Duty Brushed Chrome Commercial Cylindrical Privacy Bed/Bath Door Handle with Lock and Clutch
Original price was: $49.62.$35.23Current price is: $35.23.
Locking lever provides privacy for interior bed/bathroom doors
ADA compliant, ANSI A156.2 Grade 2 Certified, UL Listed R20759

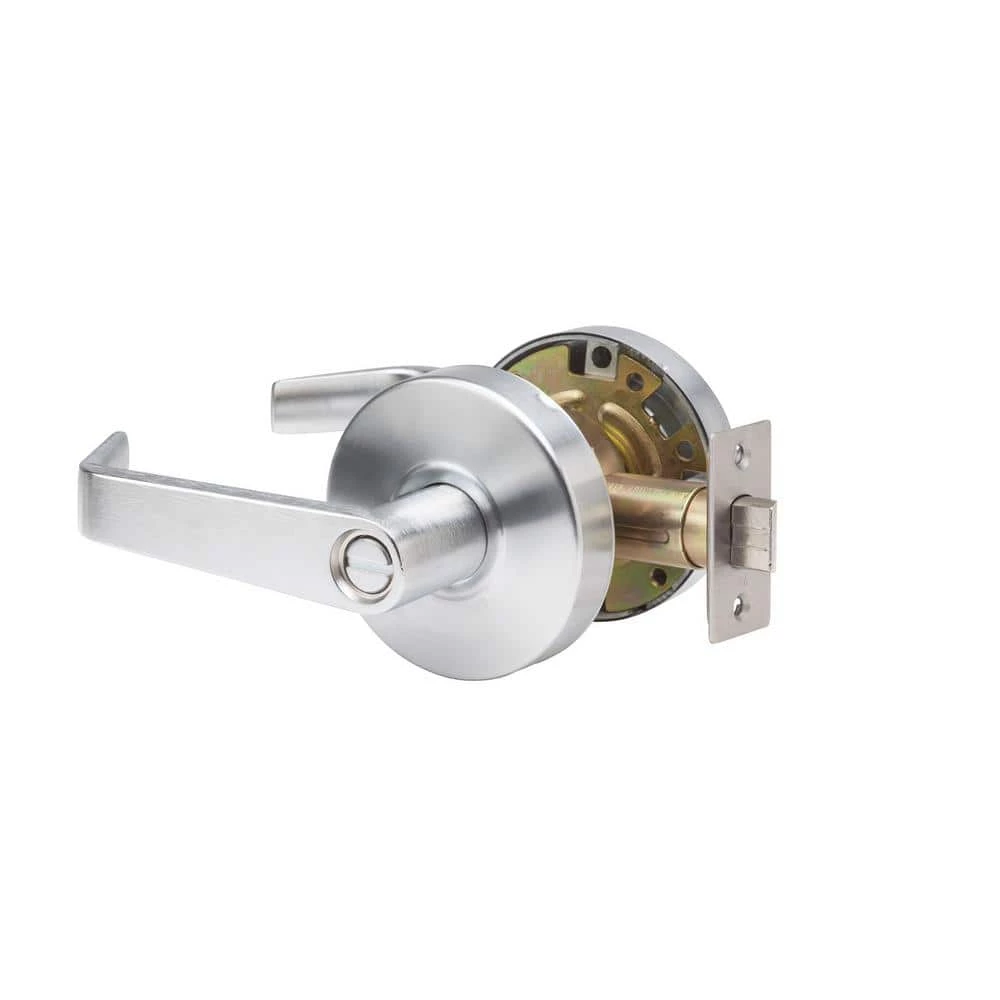

Freewheeling clutch lever mechanism for added safety
- Quick responses, top-notch service.
- The quality solution for all your needs.
- Fast, friendly, always here to help.
- Experience the difference quality makes.

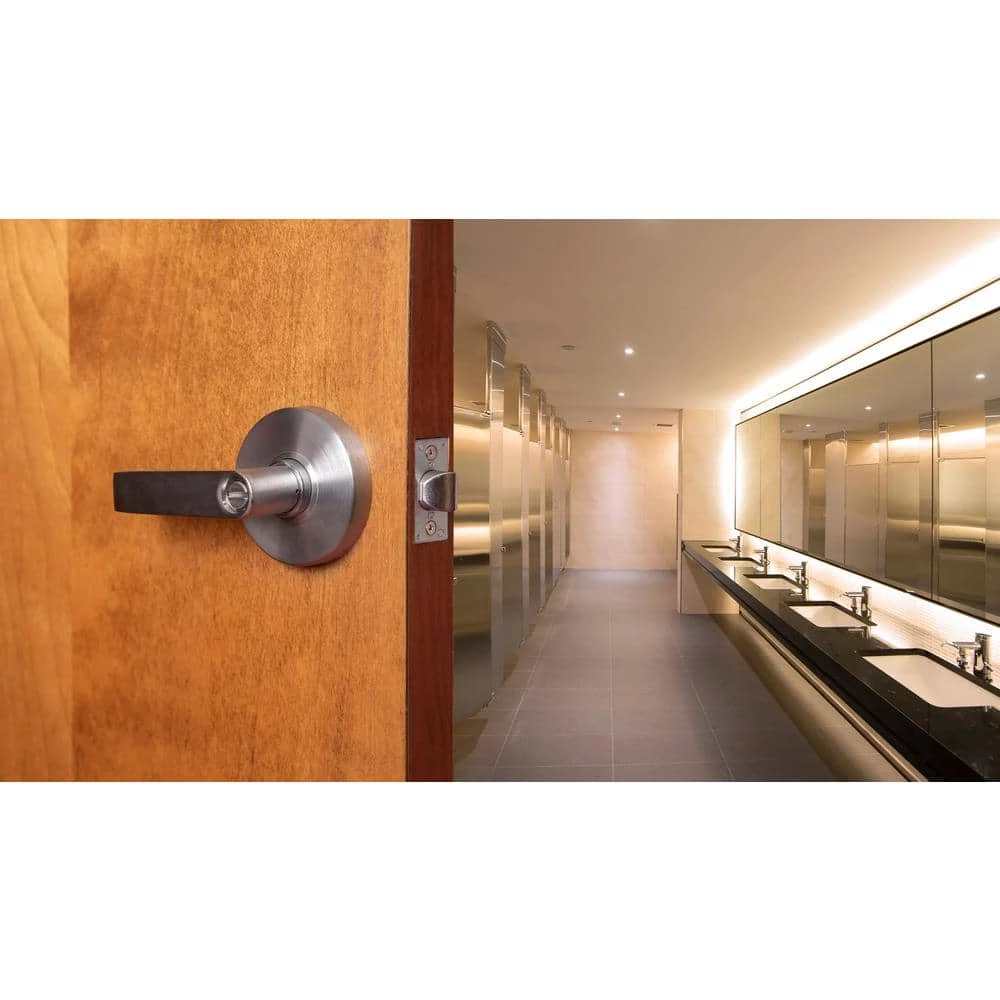

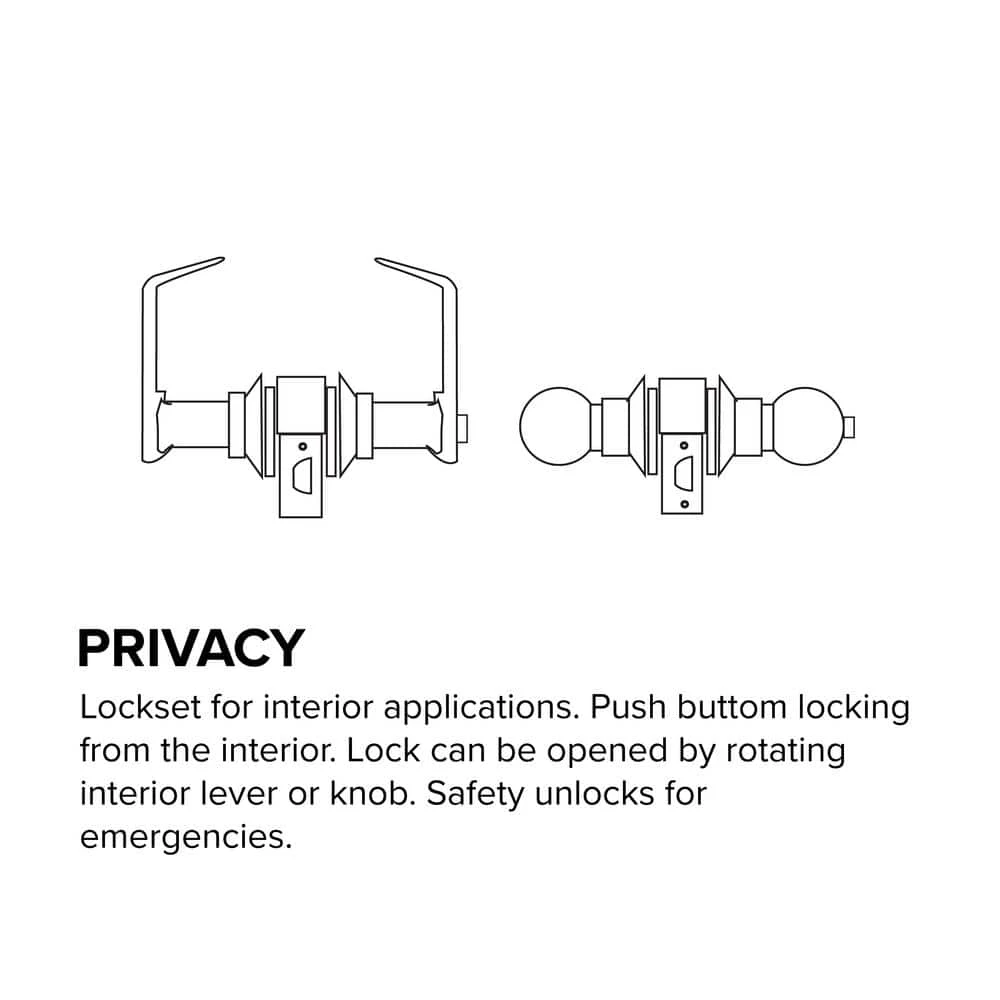

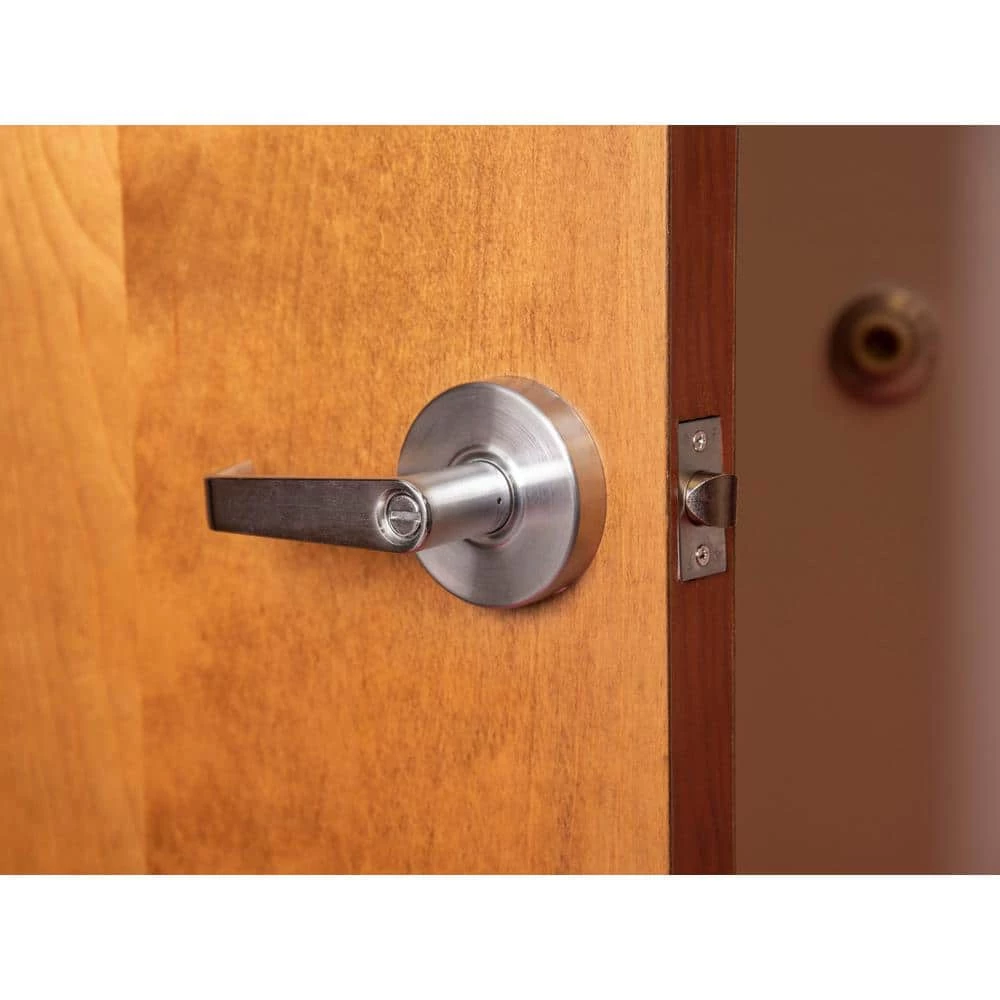

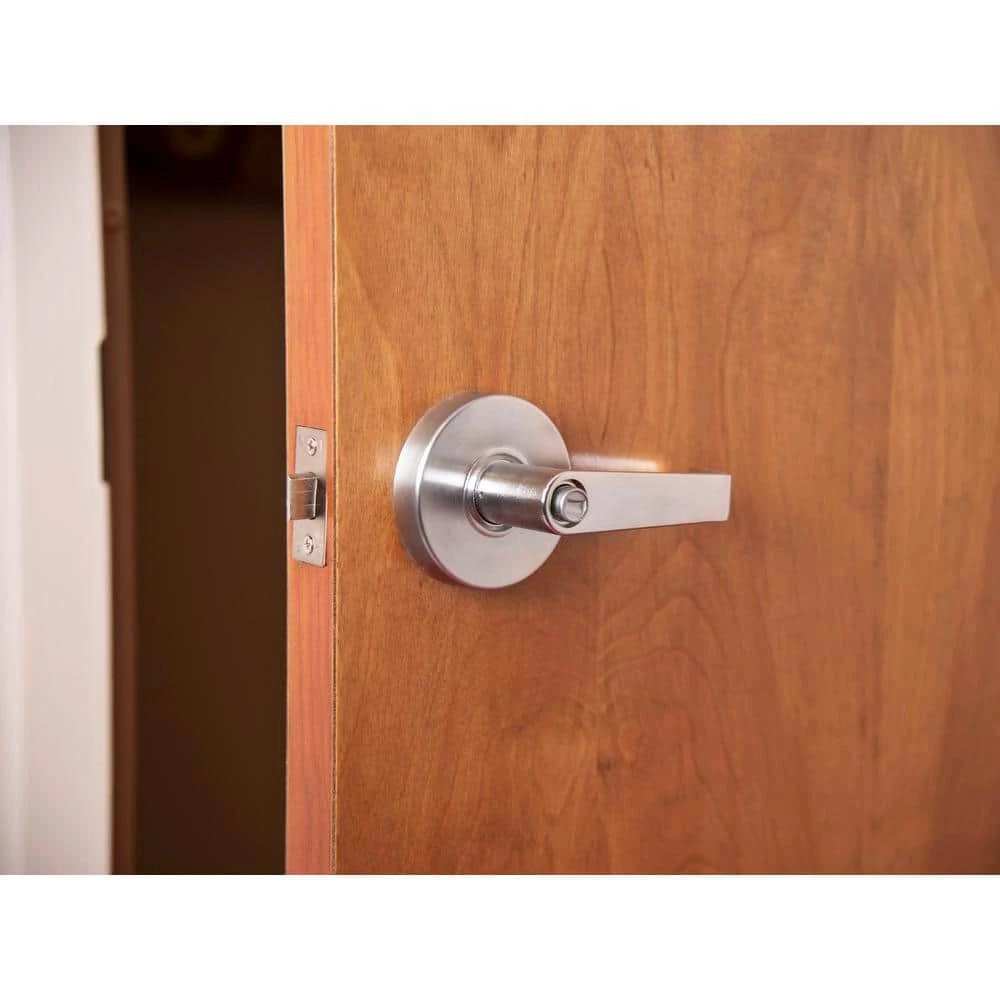

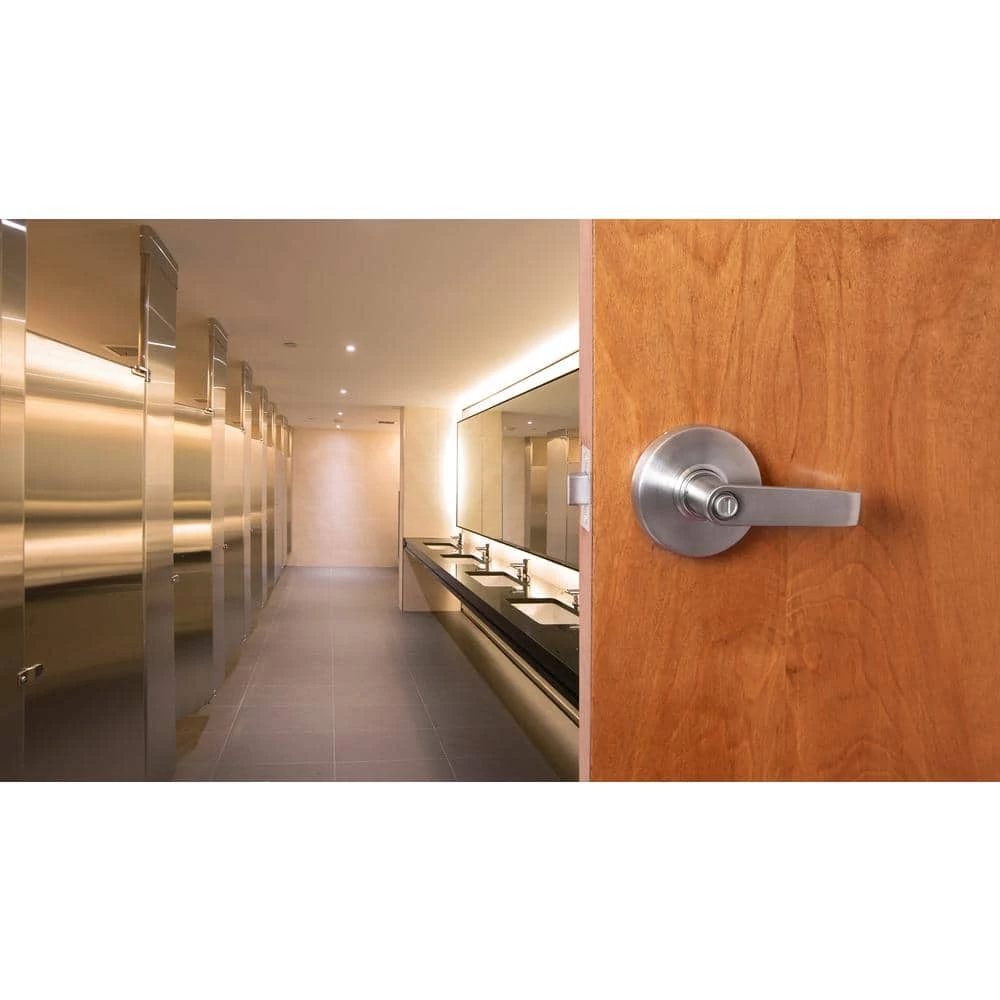

The Global Door Controls GAL cylindrical privacy leverset comes in a brushed chrome finish and includes an ANSI strike. This privacy door handle is designed for use on bathrooms and bedrooms, and features a push button on the interior side that locks the door but will unlock when the inside lever is turned. This leverset is ADA compliant and includes a clutch function that allows the lever to rotate without unlatching the lock. Constructed for durability, this lever exceeds ANSI standards for Grade 2, making it the perfect fit for commercial, standard duty applications. It includes all necessary hardware and instructions, resulting in an easy installation process.
- Fits doors with 1-3/8 in. to 1-7/8 in. thickness
- Removable Thru-Bolts to prevent lock rotation
- Non-handed/reversible (fits both right and left-handed doors)

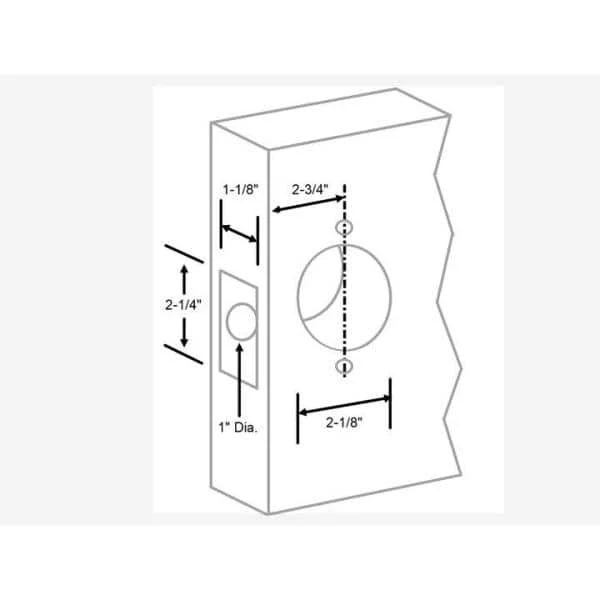

- Backset: 2-3/4″, Latch Face: 1-1/8″ x 2-1/4″
- Includes ANSI Strike, measuring 1-1/4″ x 4-7/8″
- Lifetime Mechanical Warranty
- Fits 161 door prep
- Individual spring on each side prevents lever sag
| Application Type | Privacy |
|---|---|
| Strike | Round corner |
| Strike Width (in.) | 1.25 |
| Strike Height (in.) | 4.875 |
| Projection (in.) | 2.75 |
| Minimum Door Thickness (in.) | 1.375 |
| Maximum Door Thickness (in.) | 1.875 in |
| Lever housing width (in.) | 3.5 |
| Lever housing height (in.) | 3.5 |
| Lever Grip Length (in.) | 5.5 in |
| Cross Bore Diameter (in.) | 2.125 in |
| Assembled Width (in.) | 6.5 in |
| Assembled Height (in.) | 3.5 in |
| Assembled Depth (in.) | 3 in |
| Manufacturer Warranty | Lifetime Mechanical Warranty |
| Certifications and Listings | ADA Compliant,ANSI Certified,UL Listed |
| Security/ANSI Grade | ANSI Grade 2 (Better) |
| Commercial/Residential | Commercial |
| Hardware Finish Family | Chrome |
| Door Handing | Universal |
| Door Lock Style | Classic |
| Door Locks & Knobs Product Type | Privacy Levers |
| Features | Easy Installation |
| Finish | Brushed Chrome |
| Hardware Color Family | Chrome |

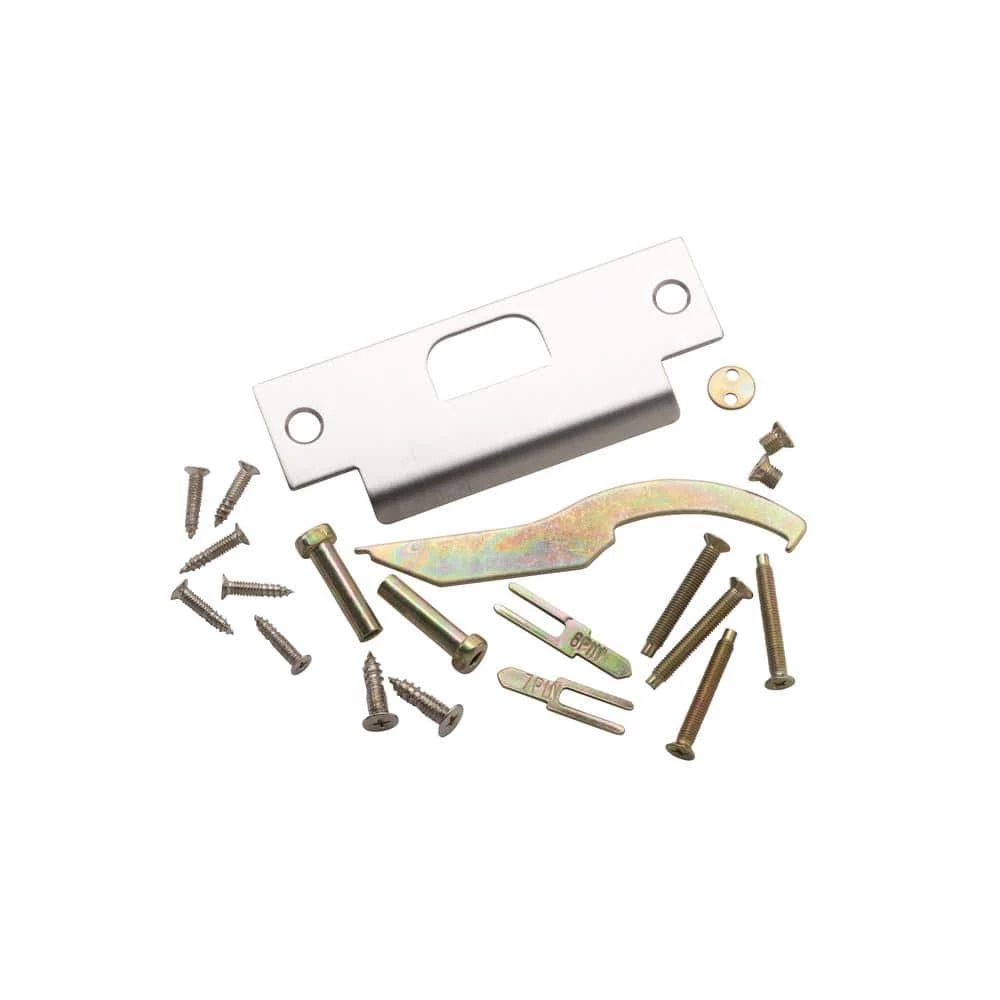

| Included | Hardware,Installation Instructions,Mounting Hardware,Self Guiding Screws |
| Returnable | 90-Day |
| Interior/Exterior | Interior |
| Lever material | Steel |
| Lever style | Straight |
| Lock Type | Unkeyed |
| Material | Steel |
| Product Weight (lb.) | 3.22 lb |
| Throw Length (in.) | 2.75 |
