Global Door Controls EDTBAR Series Duronotic Grade 1 Commercial 48 in. Rim Touch Bar Exit Device

Original price was: $114.00.Current price is: $74.10.

UL Listed SA32524, ANSI A156.2 Grade 1 (Non Fire-Rated)
ADA Compliant, non-handed/reversible
Best with aluminum, hollow metal & wood doors up to 48″ wide

Quick responses, top-notch service.

The quality solution for all your needs.

Fast, friendly, always here to help.

Experience the difference quality makes.

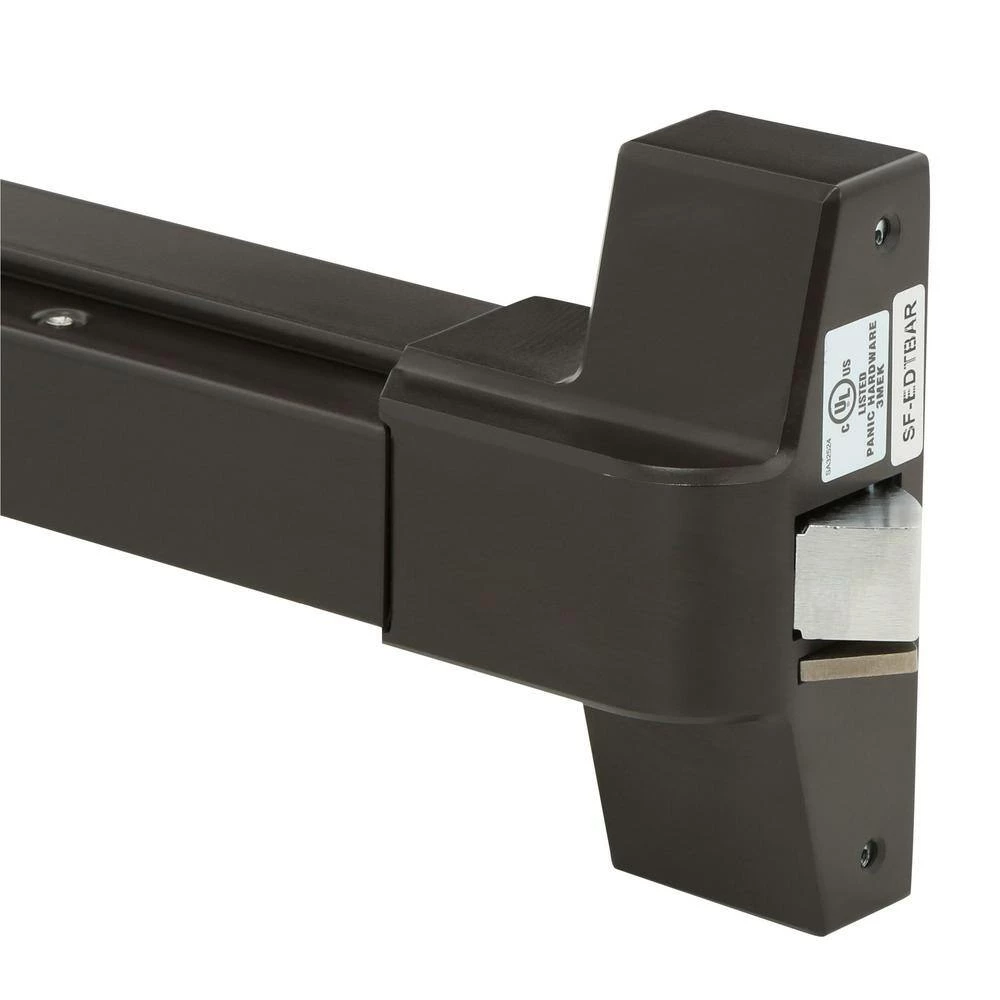

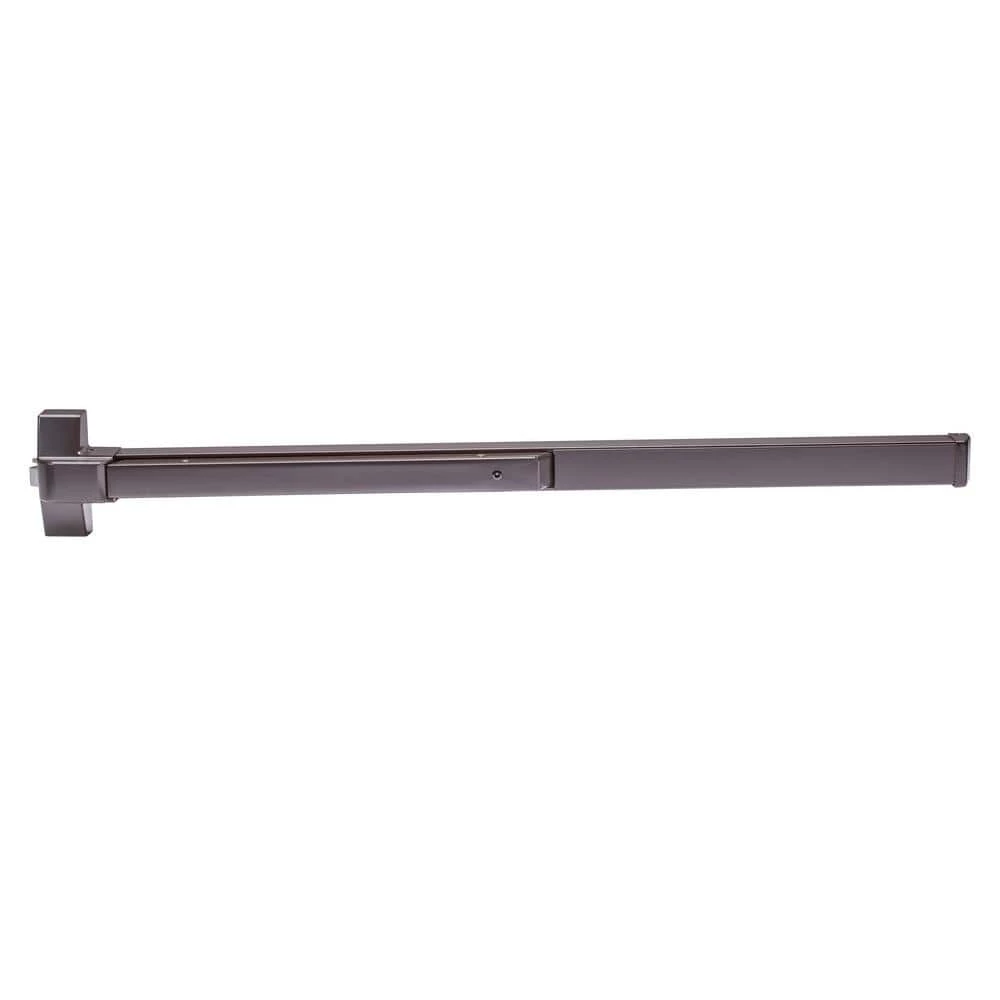

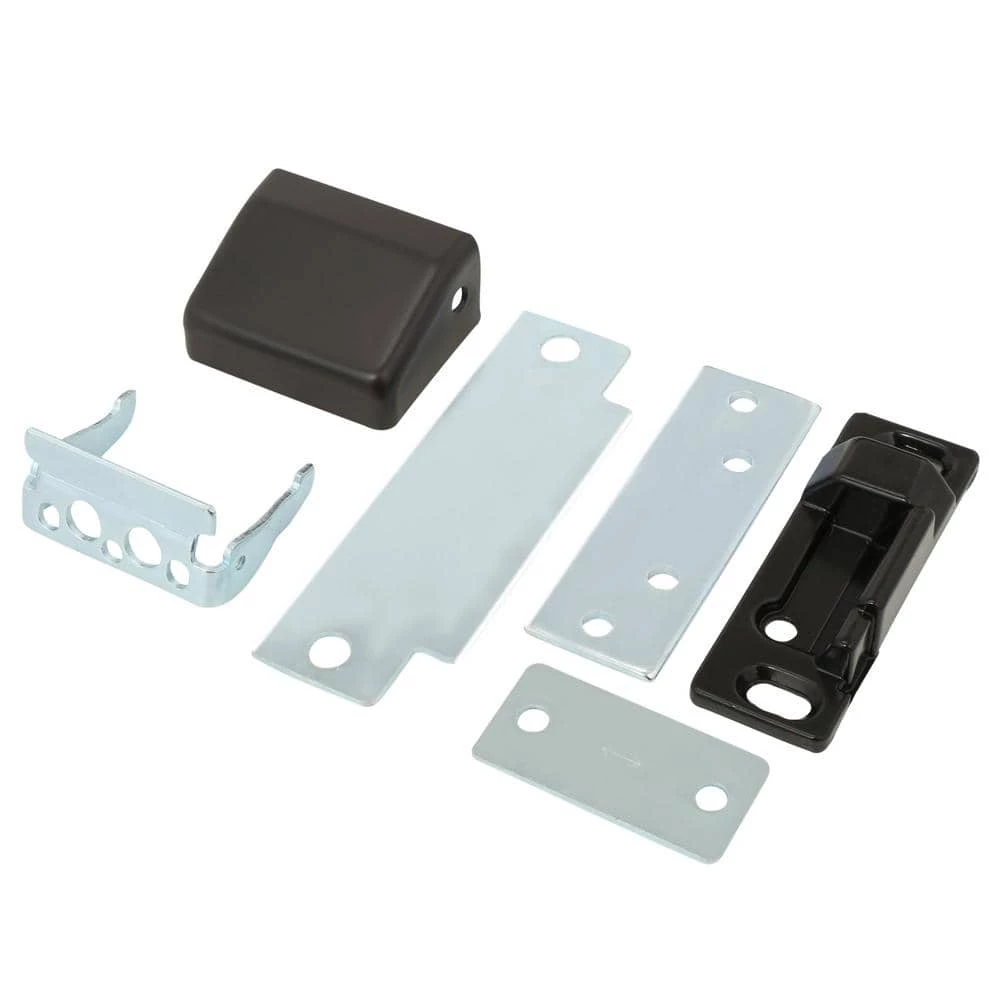

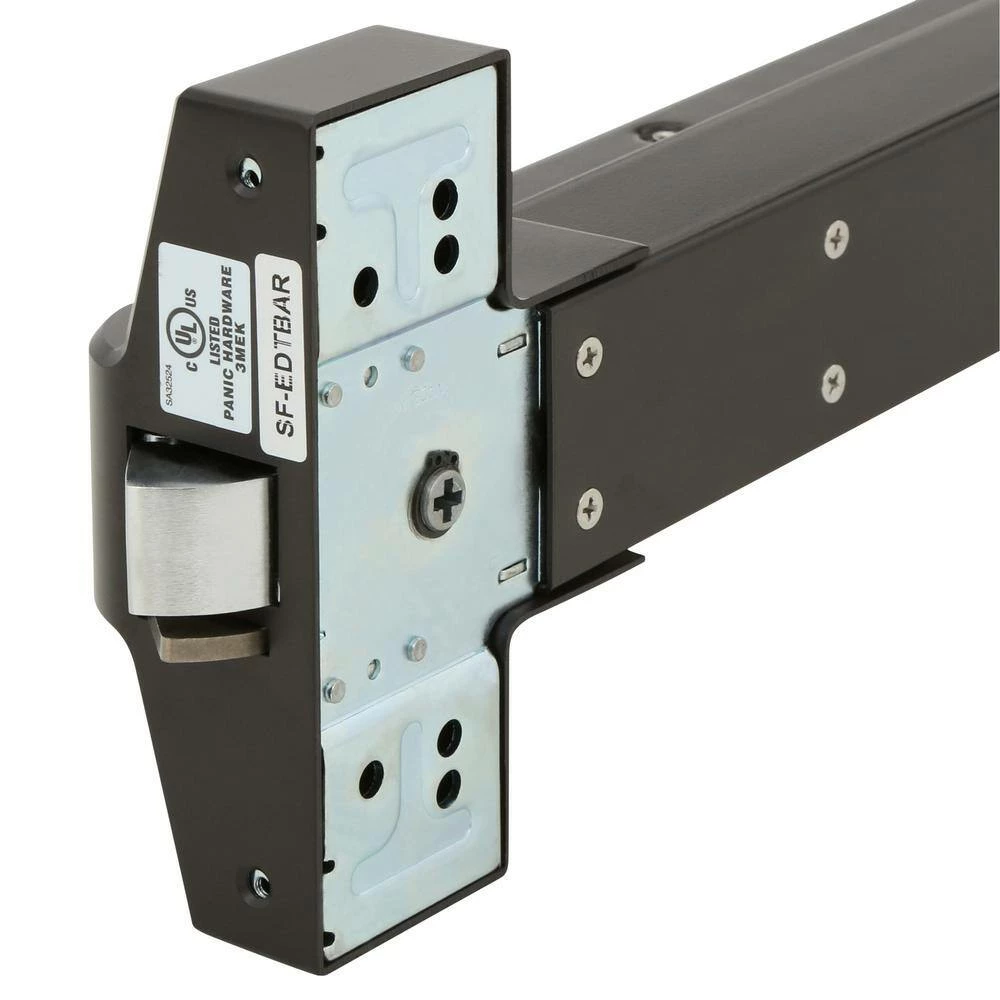

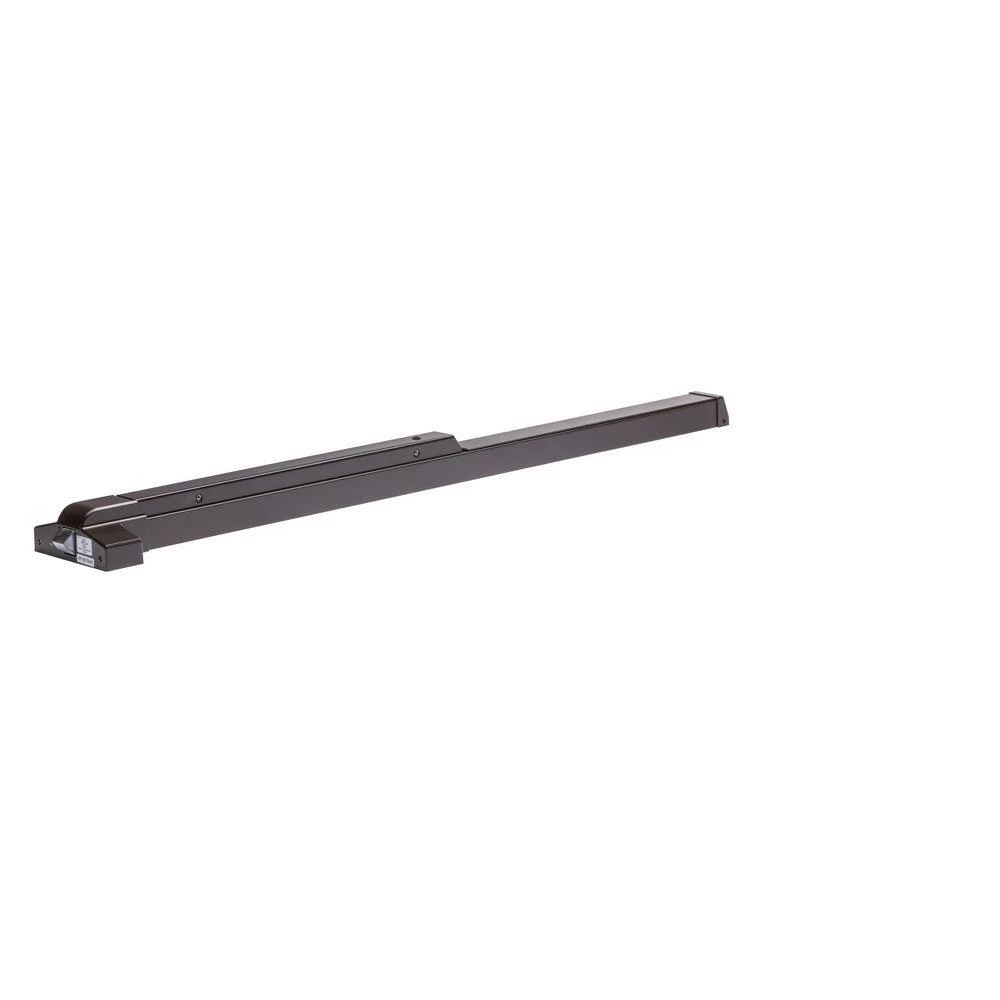

The Global Door Controls EDTBAR Series Rim Touch Bar Exit Device comes in a duronotic finish and fits doors up to 48 in. W, but can be cut down to 36 in. if needed. The touch bar is suitable for all aluminum, hollow metal or wood doors where there is no projection on the face. It is ADA compliant and exceeds ANSI standards for Grade 1, making it the perfect fit for any commercial and industrial applications where heavy usage is anticipated. The exit device includes a roller latch, strike plate and all mounting hardware, but the exterior lever trim is sold separately.

Set up for dogging and includes dogging hex key (1/2 in. turn 5/32 in. hex key)
Backset: 2-3/4 in.
Strike: surface mounted for 5/8 in. stop with shim
Projection: 2-1/2 in. to 1-7/8 in. dogged
Stile (head width): 4-1/4 in. minimum
Door thickness: 1-3/4 in. to 2 in.
Cylinder (not included): accepts key trim cylinders with flat tail piece

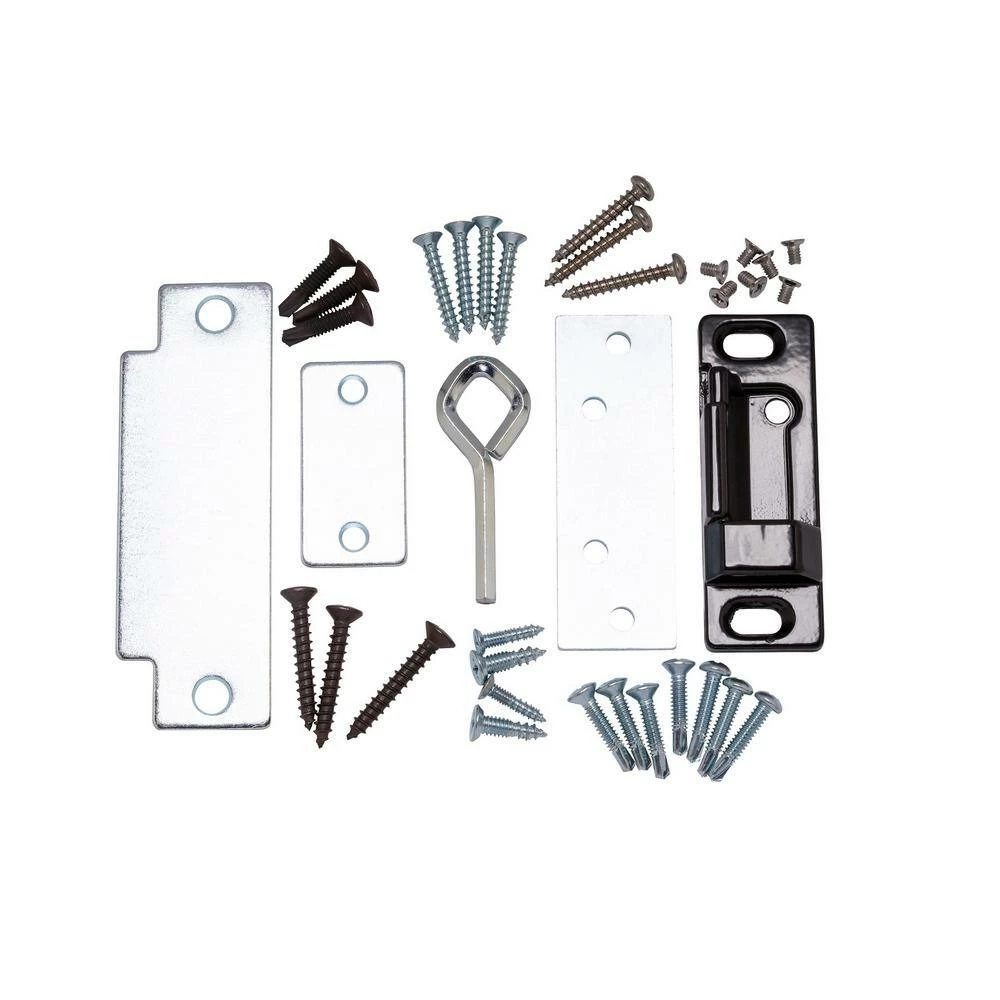

Easy installation, all mounting hardware included

Builders Hardware Product Type	Exit Devices
Commercial/Residential	Commercial
Door Handing	Universal
Finish	Duronotic
Function	Exit Only
Hardware Color Family	Brown
Hardware Finish Family	Brown
Material	Aluminum
Returnable	90-Day
Manufacturer Warranty	10 Year Warranty
Product Depth (in.)	2.5 in
Product Height (in.)	2 in
Product Width (in.)	48 in
Projection (in.)	2.5
