Global Door Controls Duronotic Overhead Concealed Adjustable Door Closer with 105-Degree Swing Radius and Hold Open Arm

Original price was: $111.69.Current price is: $83.77.

Overhead conceled closer with cast iron housing
Adjustable backcheck, latch & closing speeds
Meets the performance standards of ADA, Grade1 & ANSI BHMA A156.4

Quick responses, top-notch service.

The quality solution for all your needs.

Fast, friendly, always here to help.

Experience the difference quality makes.

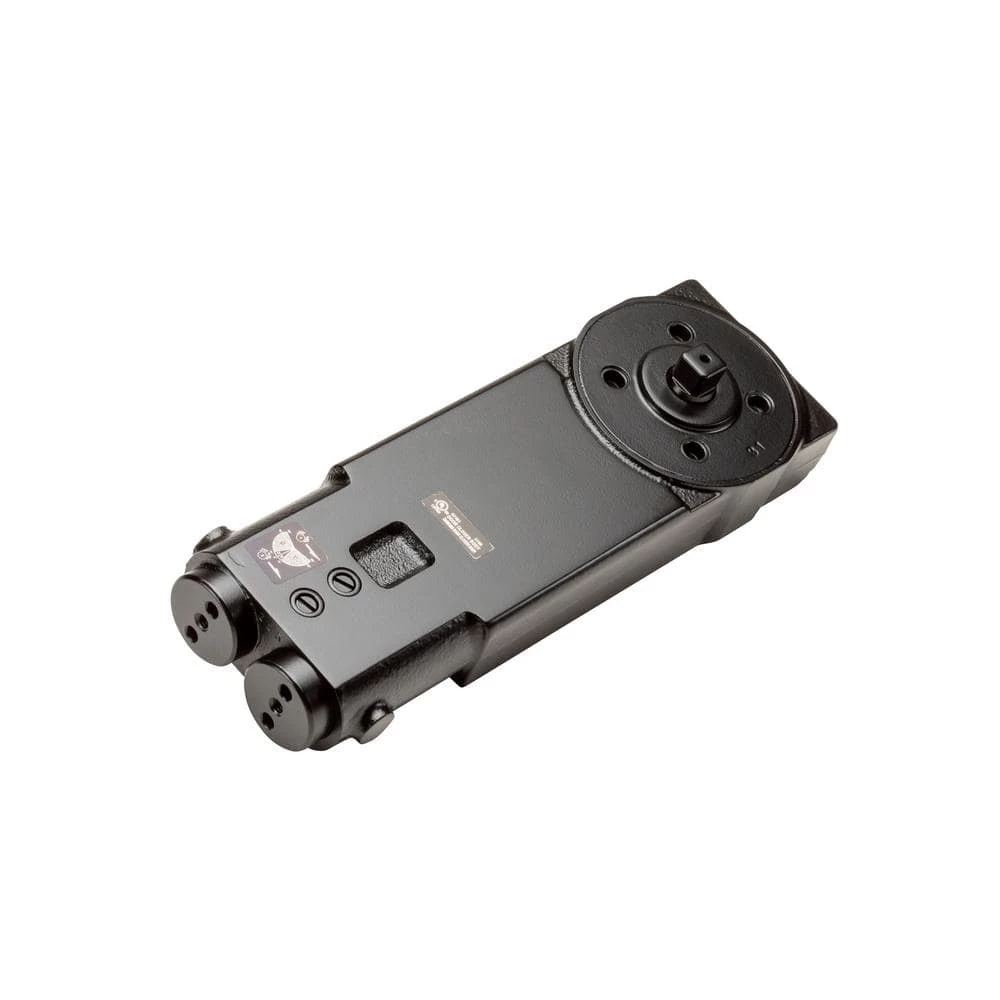

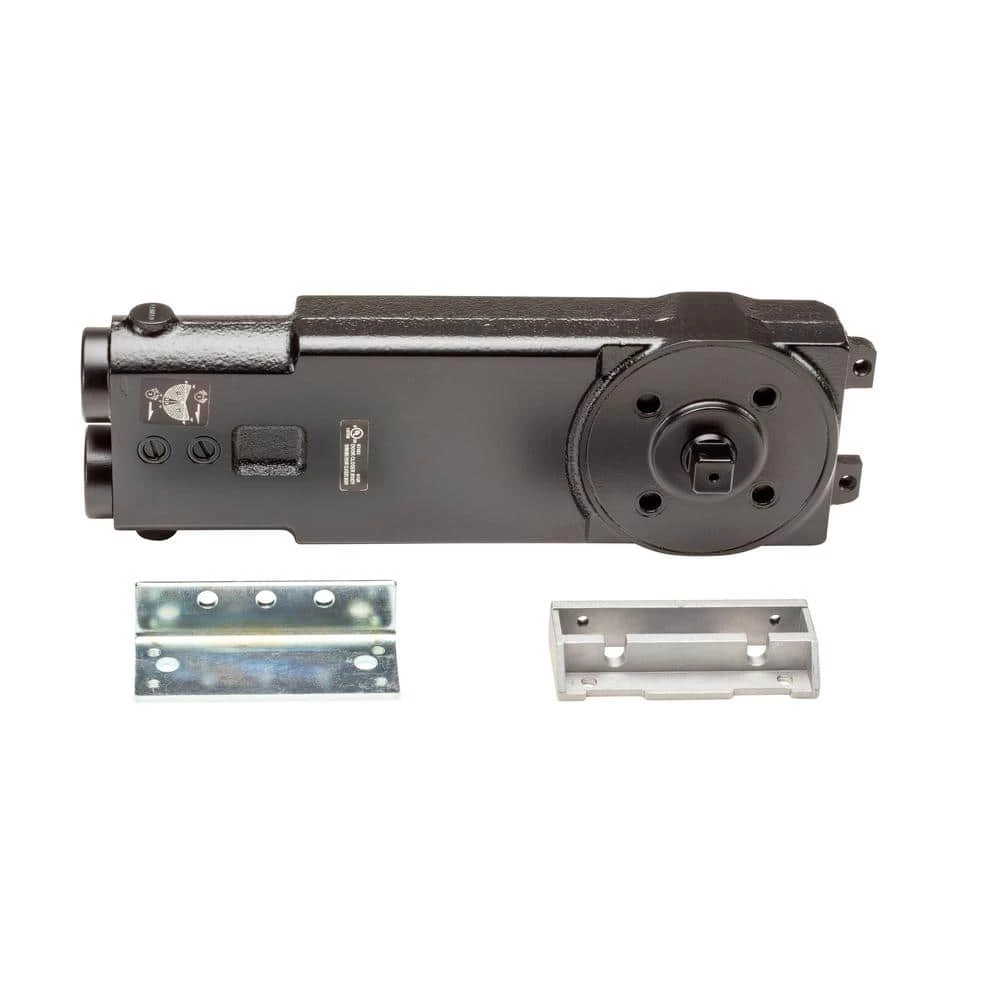

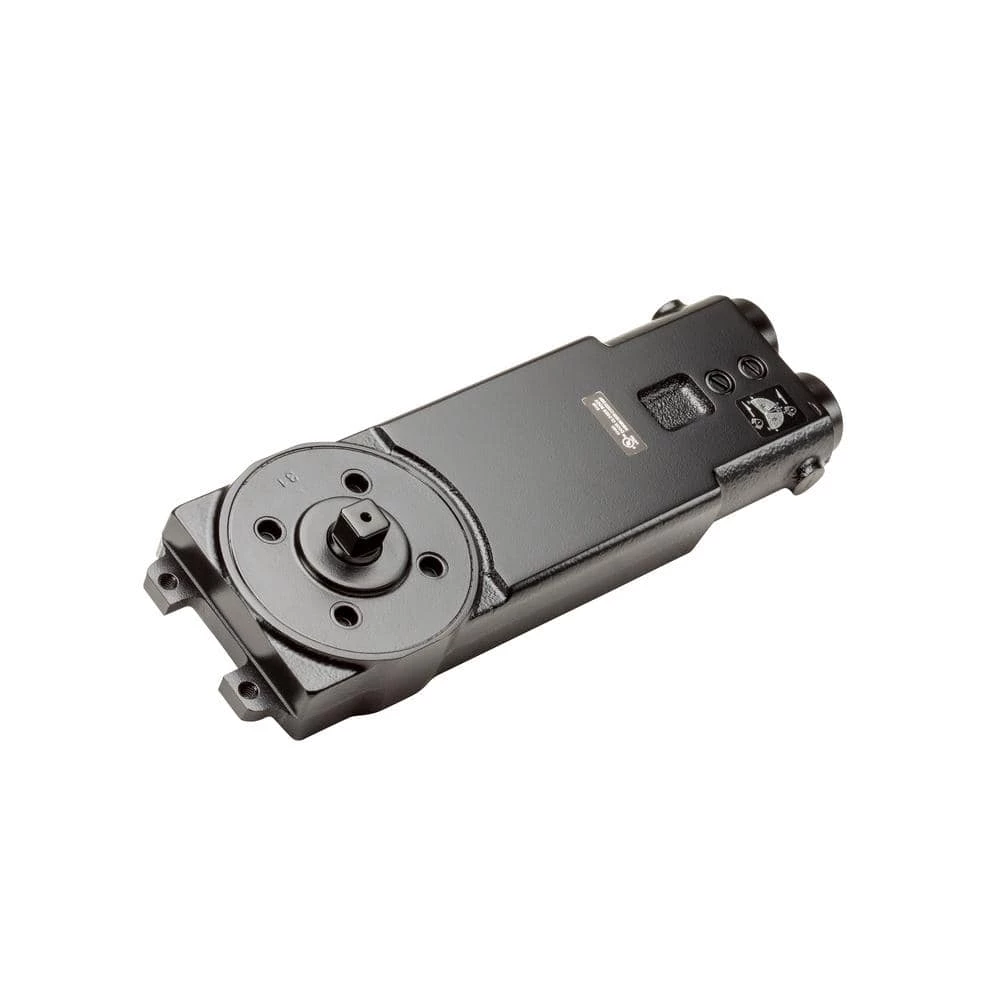

The Global Door Controls TC7010 overhead concealed door closer has a compact design that offers an excellent “hidden” solution. It features a 105° swing radius with adjustable spring tension. Consistent closure speed is assured with its temperature-sensitive hydraulic fluid.

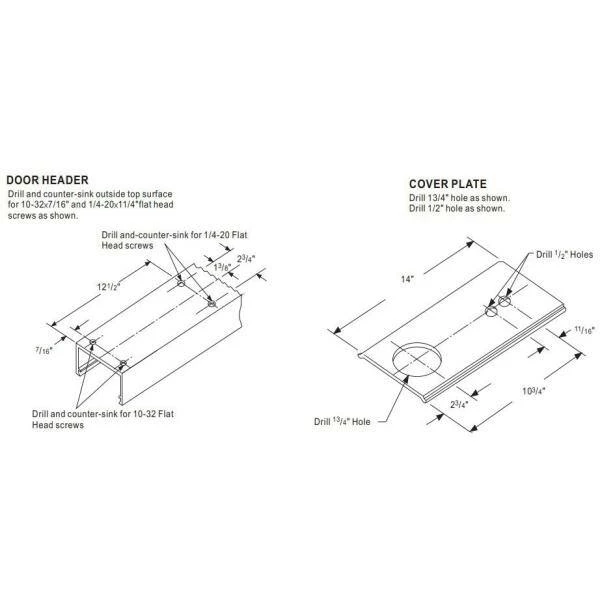

Recommended for installation in aluminum door frame applications
Doors weighing up to 225 lbs.

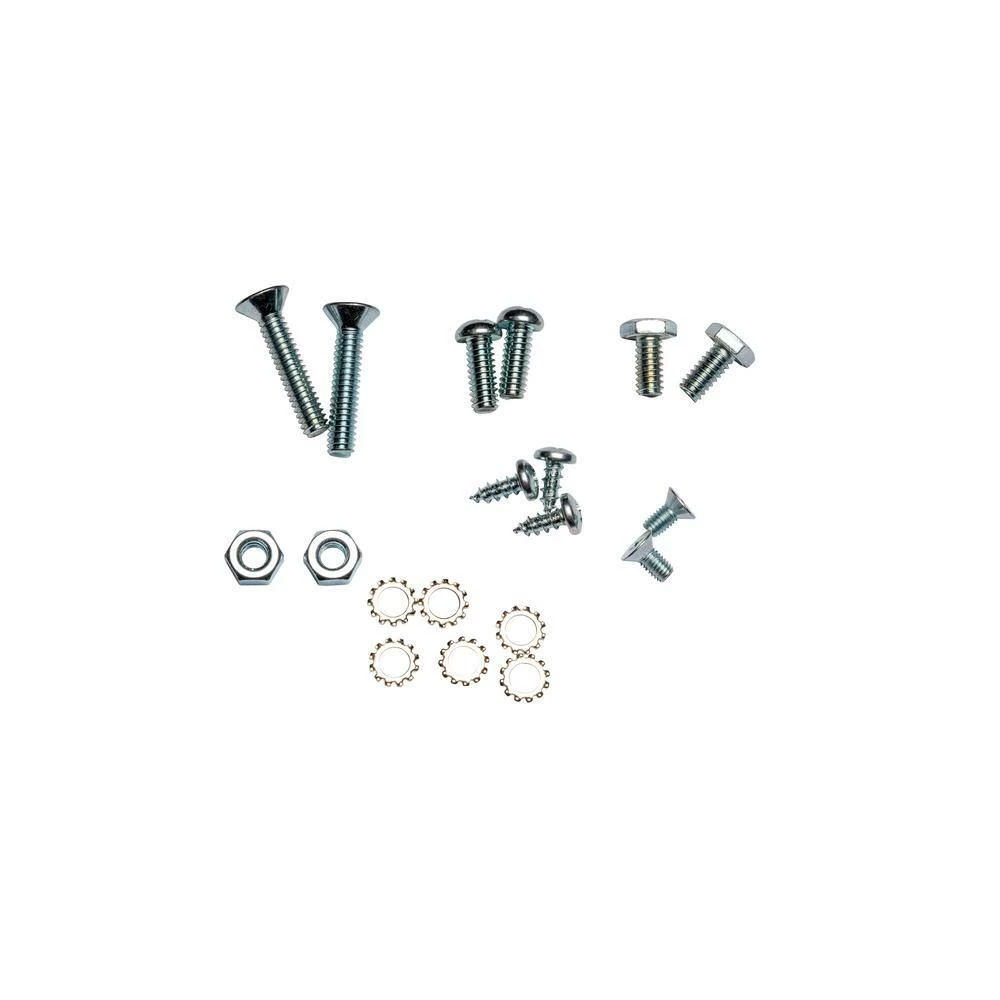

Mounting hardware included
Center-pivoted for single and double acting doors
UL Listed R7483
Includes hold open feature at 105°

Adjustable closing speed	Yes
Interior/Exterior	Interior/Exterior
Product Height (in.)	3 in
Product Depth (in.)	12 in
Manufacturer Warranty	5 years
Certifications and Listings	UL Listed
Weight load (lb.)	225
Returnable	90-Day
Material	Metal
Hardware Finish Family	Bronze
Brand Compatibility	Various
Hardware Color Family	Bronze
Door Closer Operation	Spring
Door Closer Features	No Additional Features
Commercial / Residential	Commercial / Residential
Color Family	Metallics
Color	Bronze
Builders Hardware Product Type	Door Closer
Product Width (in.)	3 in
