Global Door Controls 36 in. Stainless Steel Touch Bar Exit Device
Original price was: $149.80.$94.99Current price is: $94.99.
UL Listed SA32524, ANSI A156.2 Grade 1 (Non Fire-Rated)
ADA Compliant, non-handed/reversible
Best with aluminum, hollow metal & wood doors 30” to 36” wide
- Quick responses, top-notch service.
- The quality solution for all your needs.
- Fast, friendly, always here to help.
- Experience the difference quality makes.

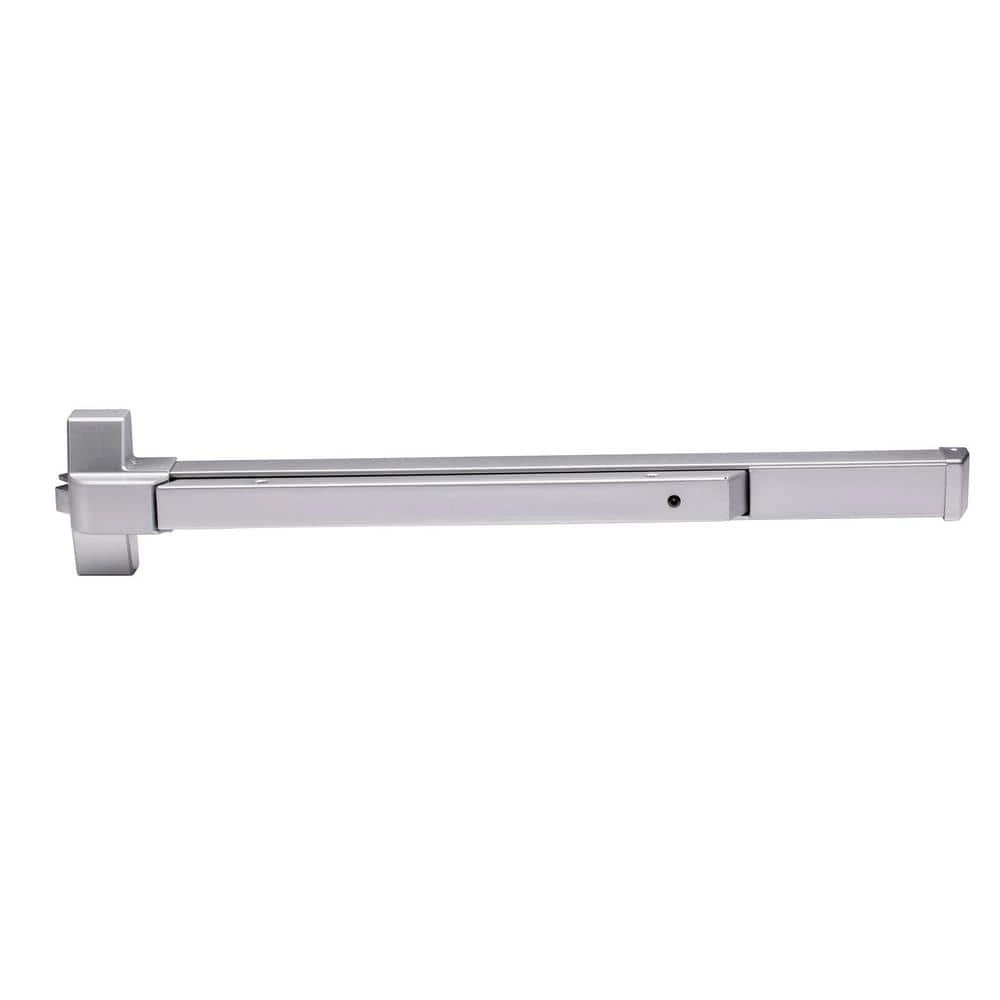

The Global Door Controls EDTBAR Series Rim Touch Bar Exit Device comes in a stainless steel finish and fits doors up to 36 inches wide, but can be cut down to 30 inches if needed. The touch bar is suitable for all aluminum, hollow metal, or wood doors where there is no projection on the face. It is ADA compliant and exceeds ANSI standards for Grade 1, making it the perfect fit for any commercial and industrial applications where heavy usage is anticipated. The exit device includes a roller latch, strike plate, and all mounting hardware, but the exterior lever trim is sold separately.
- Set up for dogging & includes dogging hex key (½ turn 5/32″ hex key)
- Backset: 2-3/4 in.
- Strike: surface mounted for 5/8 in. stop with shim
- Projection: 2-1/2″ to 1-7/8″ dogged
- Stile (head width): 4-1/4″ minimum
- Door Thickness: 1-3/4″ to 2″
- Cylinder (not included): accepts key trim cylinders with flat tail piece
- Easy installation, all mounting hardware included
| Builders Hardware Product Type | Exit Devices |
|---|---|
| Commercial/Residential | Commercial |
| Door Handing | Universal |
| Finish | Stainless Steel |
| Function | Exit Only |
| Hardware Color Family | Silver |
| Hardware Finish Family | Silver |
| Material | Stainless Steel |
| Returnable | 90-Day |
| Manufacturer Warranty | 10 Year Warranty |
| Product Depth (in.) | 2.5 in |
| Product Height (in.) | 2 in |
| Product Width (in.) | 36 in |
| Projection (in.) | 2.5 |
